Lapp Kabel Etherline FD P Ethernet Cable 4 Pair CAT5E 26AWG 125V Copper PUR Water Blue

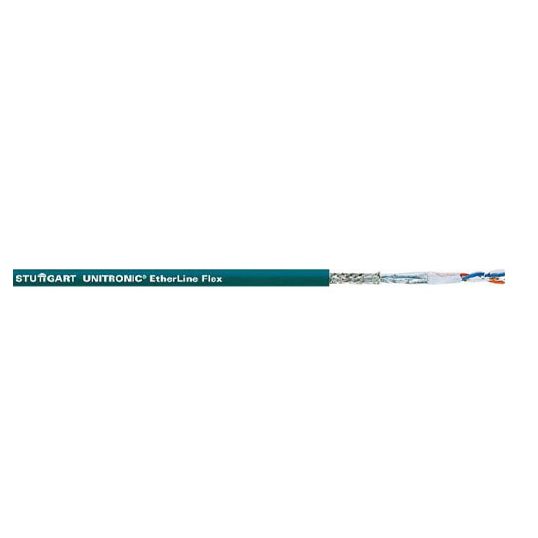

$Lapp_Kabel\Lapp_Kabel_2170489.jpg$

Description

Ethernet Cable, 26 AWG, Bare Copper, 125 Volt, 4 Pair, 6.3 mm Overall Diameter, Static 50.4 mm Flexible 94.5 mm Bend Radius, Tinned Copper Braid Screen, Inner: Thermoplastic Elastomer/Outer: Polyurethane Sheath, Blue Sheath, Static -30 to 80 deg C Flexible -5 to 70 deg C, IEC 60332-1-1 IEC 60754-1 IEC 60754-2

Key Specifications

SKU	LAP2170489
Brand	Lapp Kabel
Range Name	Etherline FD P
Product Type	Ethernet Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	2170489
Bend Radius	Static 50.4 mm/Flexible 94.5 mm
Conductor Size	26 AWG
Conductor Type	Bare Copper
Number of Pairs	4 Pair
Overall Diameter	6.3 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Blue
Sheath Material	Inner: Thermoplastic Elastomer/Outer: Polyurethane
Standards	IEC 60332-1-1 IEC 60754-1 IEC 60754-2
Temperature	Static -30 to 80 deg C Flexible -5 to 70 deg C
Voltage	125 Volt
