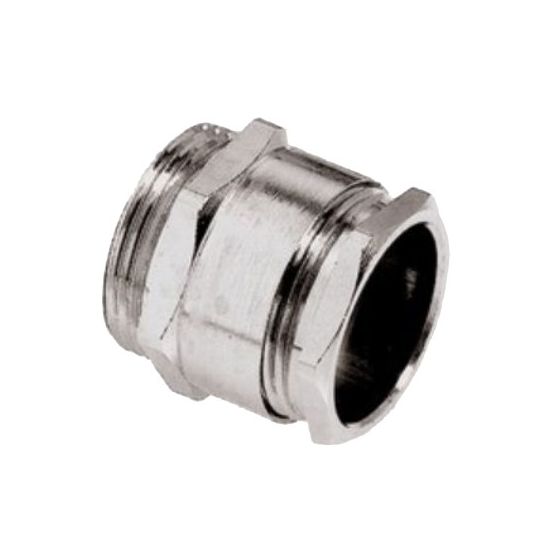

Lapp Kabel Flat Cable Gland with Lateral Sealing Lips M20x1.5 5-15mm Nickel Plated Brass IP54

chevron-left
loader
Loading...

Description

chevron-down
Cable Gland Metal Unarmoured, M20 x 1.5 mm, 6 mm Thread Length, 1.5 mm, 5 mm Min. Sheath OD, 15 mm Max. Sheath OD, IP54, Brass Body, CR Seal, Nickel Plated, -30 to 100 deg C, 27 mm Overall Length

Key Specifications

chevron-down
SKU
LAP52107320
Brand
Lapp Kabel
Range Name
Skindicht SVF-M
Product Type
Cable Glands Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Flat cable gland with automatically fitting lateral sealing lips, optimum strain relief
  • Wide clamping range
  • Maximum vibration protection
  • Assembly time
  • Large opening allows clamping of up to two flat cables
  • For inserting flat cables, control cabinet manufacturing, conveyor systems, pumps, lifts
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product 52107320
Finish Nickel Plated
IP Rating IP54
Body Material Brass
Max. Sheath OD 15 mm
Min. Sheath OD 5 mm
Overall Length 27 mm
Temperature -30 to 100 deg C
Thread Length 6 mm
Seal Material CR
Thread Pitch 1.5 mm
Thread Size M20 x 1.5 mm
