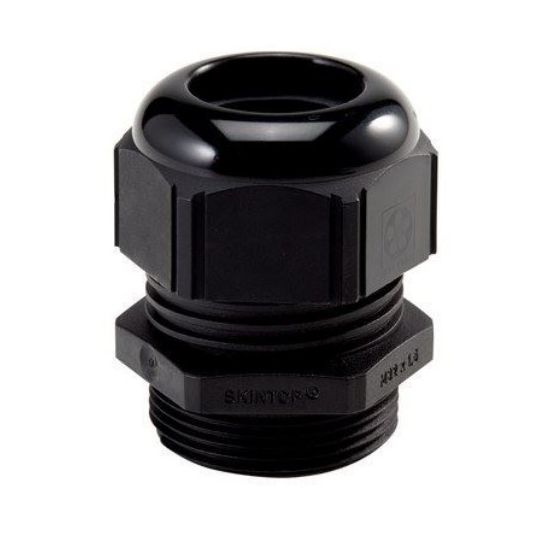

Lapp Kabel Cable Gland General Purpose Polyamide M40 x 1.5 19-28mm IP69

$Lapp_Kabel\Lapp_Kabel_53111250.jpg$

Description

Cable Gland, General Purpose, M40 x 1.5, 10 mm Thread Length, 1.5 mm Pitch, 19 mm Min. Sheath OD, 28 mm Max. Sheath OD, IP69, CR Seal, Polyamide Body, RAL 9005 Black Finish, -40 to 100 deg C (Fixed). -20 to 100 deg C (Dynamic), 52 mm Overall Length, Lock Nut Purchased Separately If Required

Key Specifications

SKU	LAP53111250
Brand	Lapp Kabel
Range Name	Skintop ST-M
Product Type	Cable Glands Non-Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High oil-resistance for maximum reliability Permanent vibration protection Optimum strain relief Temperature-resistant Good chemical resistance Used in areas where cables and wires need to be safely inserted into housings For machine and equipment manufacturing, Photovoltaic, Automation technology, Off shore platforms, equipment and shipyards
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	53111250
Body Material	Polyamide
IP Rating	IP69
Finish	Black
Max. Sheath OD	28 mm
Min. Sheath OD	19 mm
Please Note	w/out Locknut
Overall Length	52 mm
Thread Length	10 mm
Seal Material	CR
Temperature	-40 to 100 deg C (Fixed). -20 to 100 deg C (Dynamic)
Thread Size	M40 x 1.5 mm
Thread Pitch	1.5 mm
