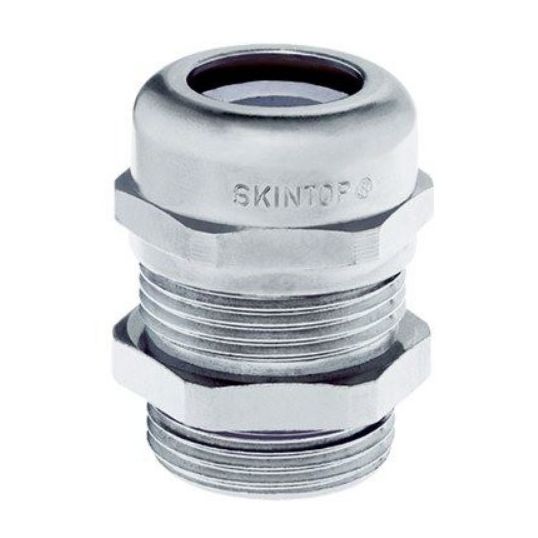

Lapp Kabel Metal Cable Gland Unarmoured General Purpose M50x1.5 22-29mm Nickel Plated Brass IP69

$Lapp_Kabel\Lapp_Kabel_Skintop_MSR-M.jpg$

Description

Metal Cable Gland, Unarmoured, General Purpose, M50 x 1.5, 10 mm Thread Length, 1.5 mm Pitch, 22 mm Min. Sheath OD, 29 mm Max. Sheath OD, For Unarmoured Cable, IP69, CR Seal, Brass Body, Nickel Plated Finish, -25 to 100 deg C (Dynamic), -40 to 100 deg C (Fixed), 55.5 mm Overall Length, 5 Pieces

Key Specifications

SKU	LAP53112160
Brand	Lapp Kabel
Range Name	Skintop MSR-M
Product Type	Cable Glands Metal

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Good chemical resistance Corrosion-resistant Mechanical resistance Optimum strain relief Acid-resistant Temperature-resistant Application include in areas where mechanical and chemical stability are critical, chemical industry, measurement and control technology, machine and equipment manufacturing, plant engineering
Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	53112160
For Use With	Unarmoured Cable
Finish	Nickel Plated
IP Rating	IP69
Body Material	Brass
Max. Sheath OD	29 mm
Min. Sheath OD	22 mm
Overall Length	55.5 mm
Temperature	-25 to 100 deg C (Dynamic)/-40 to 100 deg C (Fixed)
Thread Length	10 mm
Seal Material	CR
Thread Pitch	1.5 mm
Thread Size	M50 x 1.5 mm
