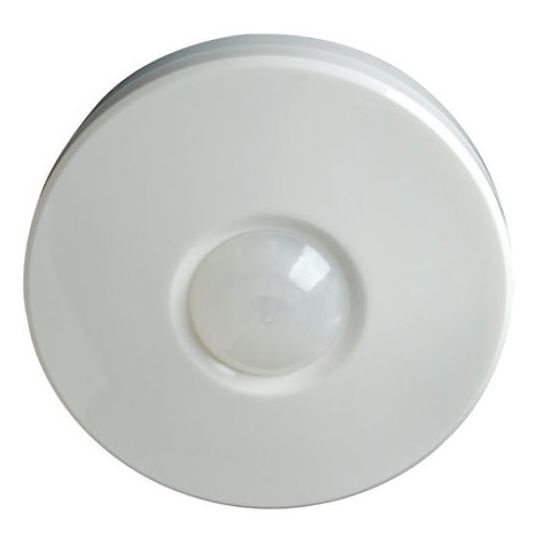

Robus Passive Infrared Motion Detector 110deg 9M 10A 220/240V IP20 White Surface Mount

Description

Passive Infrared Motion Detector, 220-240 Volt, 10 Amp, 1000 Watt, 50/60 Hz, 2-2000 lux Intensity, IP20, Surface Mounting, 2.8 mtr Mounting Height, 110 deg Detection Angle, 9 mtr Detection Distance, 2 x 1.5 mm, ABS, White, 110 mm Diameter, 45 mm Length

Key Specifications

SKU	LEDR360N-01
Brand	Robus
Product Type	Motion Detectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Rear and side entry knockouts, integral cable clamp and large mains terminals for 2 x 1.5 mm conductors Elongated fixing slots; simple to position and fix to surface Injection moulded ABS body - impact resistant LED compatible at maximum rating below No minimum load requirements 3 wire multiple PIRs can be wired in parallel
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	R360N-01
Colour	White
Conductor Size	2 x 1.5 mm
Current	10 Amp
Detection Angle	110 deg
Detection Distance	9 mtr
Diameter	110 mm
Frequency	50/60 Hz
Intensity	2-2000 Lux
Material	ABS
IP Rating	IP20
Mounting Height	2.8 mtr
Mounting Method	Surface
Voltage	220-240 Volt
Wattage	1000 Watt
