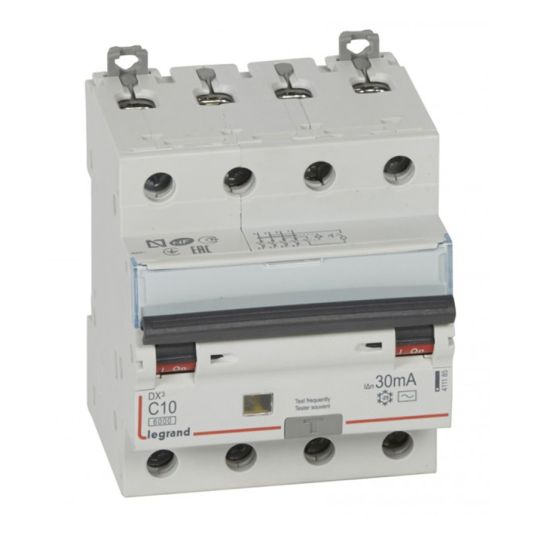

Legrand Combination RCD Circuit Breaker RCBO 4Pole 10 Amp 230/400 240/415V 6 kA 4Module 17.8mm DIN 35 Rail

$Legrand\Legrand_411185.jpg$

Description

Combination RCD Circuit Breaker RCBO, 10 Amp, 230/400, 240/415 Volt, 50 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 4, Number of Modules: 4, 17.8mm Module Width, Trip Characteristic: C Curve, 2 x 0.75 to 16 mm Flex/Rigid, 1 x 0.75 to 35 Rigid Terminal Connection, Cage, Captive Screw, IP20, IP40, DIN 35mm Rail, Polyamide and P.B.T Housing,-25 to 60 deg C, 83mm Height, 71.2mm Width, 77.85mm Depth

Key Specifications

Barcode (EAN-13)	3245064111850
SKU	LEG411185
Brand	Legrand
Range Name	Lexic DX3
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	411185
Connection Type	Cage/ Captive Screw
Frequency	50 Hz
IP Rating	IP20/40
Current	10 Amp
Interrupt Capacity	6 kA
Depth	77.85 mm
Modules	4 Module 17.8 mm
Height	83 mm
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Terminal Connection	2 x 0.75-16 sq-mm Flex/Rigid / 1 x 0.75-35 Rigid
Temperature	-25 to 60 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-400-240-415 Volt
Width	71.2 mm
