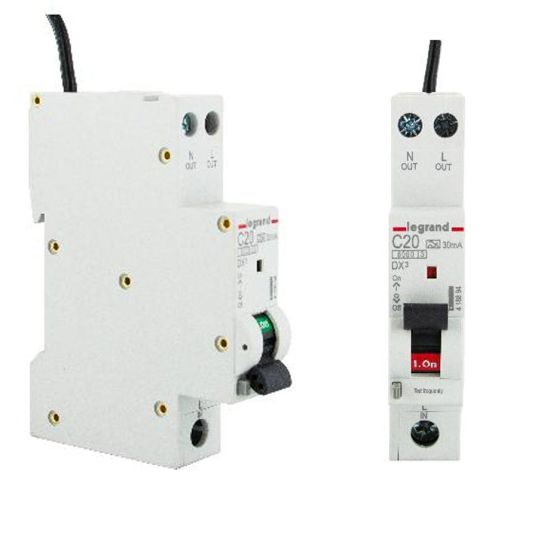

Legrand Residual Current Breaker with Overcurrent Protection (RCBO) 20Amp 6kA 30mA C Curve 1 + N Pole 1 Module

$Legrand\Legrand_418894.jpg$

Description

The future-ready Type A Residual Current Circuit Breaker with Over Current Protection (RCBO) and integrated flexible black neutral tail is compatible with DIN rail or Chassis in Distribution boards, featuring a positive contact indicator for control. It provides protection against short circuits and overloads, and isolation of electrical circuits, protecting people from direct and indirect contact and protecting installations from insulation faults.

Key Specifications

Barcode (EAN-13)	3414972389310
SKU	LEG418894
Brand	Legrand
Range Name	DX3

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	418894
Colour	Black
Depth	17.8 mm
Height	90 mm
Current	20 Amp
Frequency	50/60 Hz
Interrupt Capacity	6 kA
IP Rating	IP20
Modules	1 Module
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	25 to 40 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	76.7 mm
