3M Electrical Insulation Tape L20.1MxW12.7mmx0.178mm Glass Cloth White

$3M\3M_80012020352.jpg$

Description

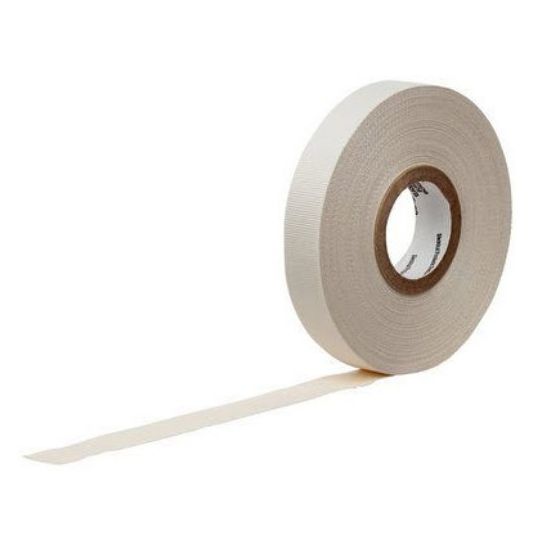

3M Glass Cloth Electrical Tape 27 is a 7 mil woven insulating tape with pressure-sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection. 3M Glass Cloth Tape 27 is edge-tear resistant, conformable, and abrasion resistant. For use as a coil cover, anchor, banding and core, layer and crossover insulation. UL Recognized. Printable.

Key Specifications

SKU	MAD3M80012020352
Brand	3M
Range Name	Scotch 27

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1/2 inch x 66 ft 7 mil woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures Adhesive is specially designed and prepared to provide corrosion protection Edge-tear resistant, conformable, and abrasion resistant For use as a coil cover, anchor, banding and core, layer and crossover insulation
Standard Pack Size	1
UNSPSC Class	39121700
UOM	EA
Vendor Product	3M 80012020352
Adhesion Strength	4.2 N/cm
Backing Material	Glass Cloth
Adhesive Material	Rubber
Colour	White
Breaking Strength	210 N/cm
Insulation Resistance	5 x 10^1 MOhm
Elongation	5%
Grade	Professional
Temperature	0 to 150 deg C
Tensile Strength	150 lb/sq-inch
Thickness	0.178 mm
Width	12.7 mm
