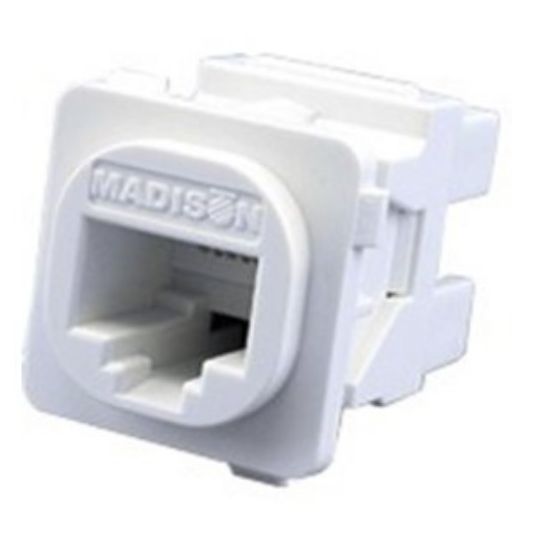

Madison Outlet Mechanism Cat6 UTP RJ45 T568A/B White
Loading...
Description
Outlet Mechanism Cat6 UTP, Solid: 22-24 AWG, RJ45 Connector, Cat6 UTP Cable, >100 MOhm Insulation Resistance, 25 lb Plug Retention Force, Wiring Scheme: T568A/B, Flammability: UL94V-0, IDC Termination, Thermoplastic Housing, Phosphor Bronze Contact Base, Gold Over Nickel Contact Plating, White
Key Specifications
| Barcode (EAN-13) |
9329849019235
|
|---|---|
| SKU |
MADMT64501C
|
| Brand |
Madison
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 12 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | MT64501C |
| Cable Type | Cat6 UTP |
| Colour | White |
| Conductor Size | Solid: 22-24 AWG |
| Connector | RJ45 |
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold Over Nickel |
| Flammability | UL94V-0 |
| Housing Material | Thermoplastic |
| Insulation Resistance | >100 MOhm |
| Termination Type | IDC |
| Wiring Scheme | T568A/B |
