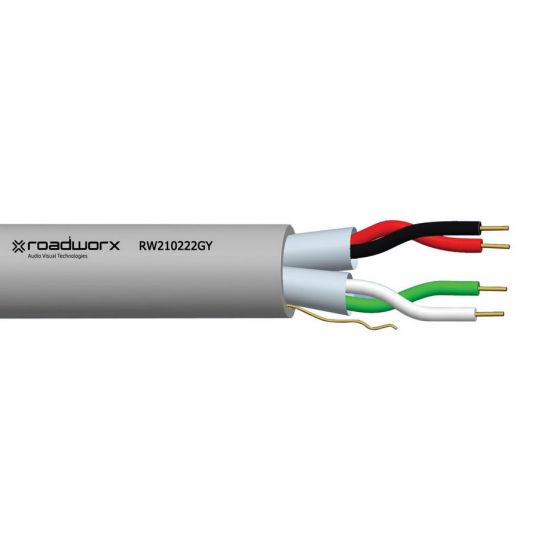

Madison Roadworx Data & Control Cable 22AWG PP/AL/PVC Grey 100M

Data and Control Cable, 22 AWG, Tinned Annealed Copper, 4.3 mm +/-0.2 mm Overall Diameter, 43 mm Installation Bend Radius, Sheath: >100% Inner Sheath: >=150% Elongation, 2 Pair, 96 N Pulling Tension, Sheath: >=12 N/sq-mm Inner: >=20 N/sq-mm Tensile Strength, 7/0.25 mm +/-0.006 mm Strands, >=0.22 mm Insulation Thickness, >=0.51 mm Sheath Thickness, DC: 49.2 Ohm/km Conductor Resistance, Core to Core: 115 pF/m Core to Shield: 203 pF/m Capacitance, Polypropylene Insulation, PVC Sheath, Aluminium Foil Screen, Red/Black/Green/White Insulation, Grey Sheath, 100 mtr Length, 15 to 70 deg C
