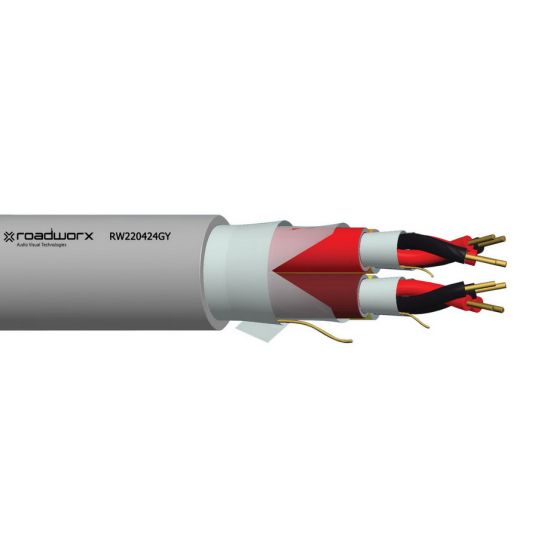

Madison Roadworx Analogue Audio Snake 4Pair 24AWG 7/0.20mm PVC Grey 500M

$Madison_Technologies\Madison_RW220424-GY.jpg$

Description

Analogue Audio Snake Multi Pair, 24 AWG, Tinned Copper, Bend Radius: Install: 84mm, Elongation: Sheath: >100%, Inner Sheath: >=300%, 4 Pair, Pulling Tension: 123 N, Tensile Strength: Sheath: >=12 N/mm; Inner: >=13.6 N/mm, Stranding: 7/0.20 +/-0.006mm, Insulation Thickness: >=0.25mm, Sheath Thickness: Inner: >=0.3mm, Outer: >=0.6mm, Conductor Resistance: DC: 93.25 Ohm/km at 20 deg C, Polyethylene Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Red/Black Insulation, Grey Sheath, 8.4 +/-0.2mm Overall Diameter, 500 mtr Length,-15 to 70 deg C

Key Specifications

SKU	MADRW220424GY500
Brand	Madison
Range Name	Roadworx
Product Type	Audio Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43221700
UOM	MTR
Vendor Product	RW220424GY500
Bend Radius	Install: 84 mm
Conductor Size	24 AWG
Conductor Resistance	DC: 93.25 Ohm/km at 20 deg C
Insulation Colour	Black/Red
Elongation	Sheath: >100%/Inner Sheath: >=300%
Conductor Type	Tinned Annealed Copper
Insulation Material	Polyethylene
Insulation Thickness	>=0.25 mm
Overall Diameter	8.4 +/-0.2 mm
Pair Count	4 Pair
Pulling Tension	123 N
Screen Material	Aluminium Foil
Sheath Thickness	Inner: >=0.3 mm/Outer: >=0.6 mm
Sheath Material	PVC
Stranding	7/0.20 +/-0.006 mm
Sheath Colour	Grey
Temperature	-15 to 70 deg C
Tensile Strength	Sheath: >=12 N/sq-mm; Inner: >=13.6 N/sq-mm
