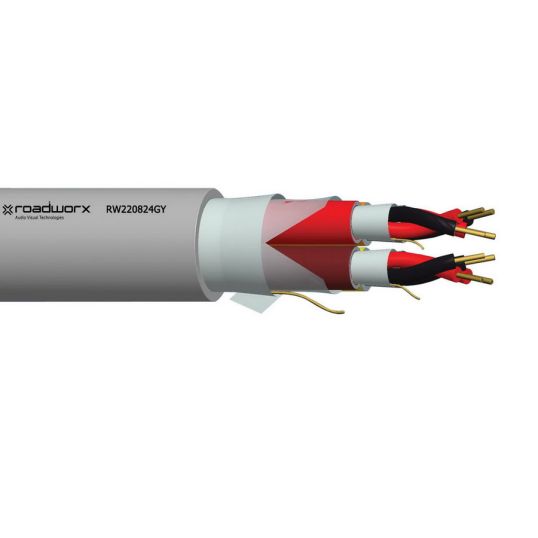

Madison Roadworx Analogue Audio Snake 8Pair 24AWG 7/0.20mm PVC Grey 300M

chevron-left
loader
Loading...

Description

chevron-down
Analogue Audio Snake, 24 AWG, Tinned Annealed Copper, 11.2 mm +/-0.2 mm Overall Diameter, 112 mm Installation Bend Radius, Sheath: >100% Inner Sheath: >=300% Elongation, 8 Pair, 246 N Pulling Tension, Sheath: >=12 N/sq-mm Inner: >=13.6 N/sq-mm Tensile Strength, 7/0.2 mm +/-0.006 mm Strands, >=0.25 mm Insulation Thickness, Inner: >=0.3 mm/Outer: >=0.8 mm Sheath Thickness, DC: 93.25 Ohm/km Conductor Resistance, Polyethylene Insulation, PVC Sheath, Aluminium Foil Screen, Black/Red Insulation, Grey Sheath, 300 mtr Length, 15 to 70 deg C

Key Specifications

chevron-down
SKU
MADRW220824GY300
Brand
Madison
Range Name
Roadworx

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 300
UNSPSC Class 52161600
UOM MTR
Vendor Product RW220824GY300
Temperature 15 to 70 deg C
