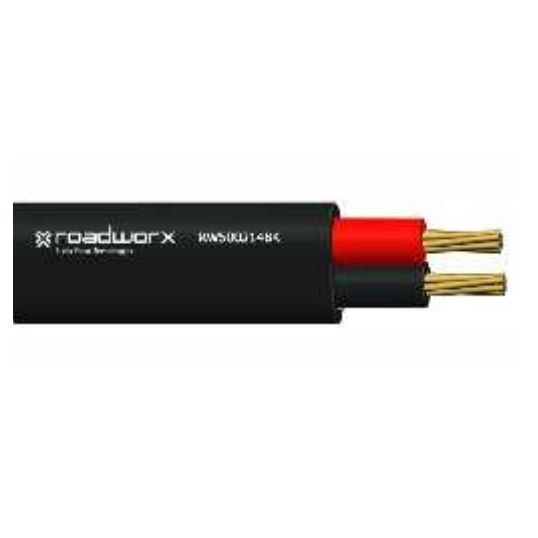

Madison 14 AWG 2 Core Black Speaker Cable

$Madison_Technologies\Madison_RW500214BK.jpg$

Description

Speaker Cable, 14 AWG, 2 kV, 2 Core, 4.05 mm +/-0.2 mm Overall Diameter, 40.5 mm Bend Radius, 0.42 mm Insulation Thickness, 0.42 mm Sheath Thickness, >=100% Elongation, >=12 N/mm Tensile Strength, 9.7 Ohm/km Conductor Resistance, PVC Insulation, Red/Black Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C

Key Specifications

SKU	MADRW500214BK200
Brand	Madison
Range Name	Roadworx
Product Type	Speaker Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	200
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RW500214BK200
Bend Radius	40.5 mm
Conductor Resistance	9.7 Ohm/km
Insulation Colour	Black/Red
Elongation	>=100%
Conductor Size	14 AWG
Insulation Material	PVC
Insulation Thickness	0.42 mm
Overall Diameter	4.05 mm +/-0.2 mm
Number of Cores	2 Core
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	0.42 mm
Temperature	-15 to 70 deg C
Tensile Strength	>=12 Nm
Voltage	2 kV
