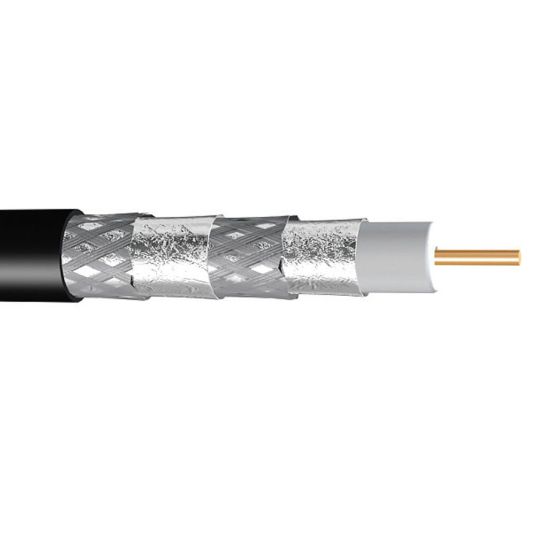

Matchmaster Digimatch RG11 Coaxial Cable Quad Shield 75Ohm Black 305M

$Matchmaster\Matchmaster_06MM-E11QM.jpg$

Description

RG11 Coaxial Cable Quad Shield, Inner: 1.63 +/-0.015mm, Outer: 7.32 +/-0.15mm Conductor Diameter, Bend Radius: Single: 50mm, Typical: 100mm, Adhesion Force: >60 N, Pulling Tension: 384 N, Insulation Resistance: >1x10 power of 4 MOhm.km, Capacitance: 54 pF/mtr, 75 +/-3 Ohm Impedance, Al-Mg Alloy Wire Braid, Physically Foamed PE Insulation, Fire Resistant PVC Sheath, Non-Bonded Aluminium/PET/Aluminium Tape Screen, Black Sheath, 10.34 +/-0.2mm Overall Diameter, 305 mtr Length,-40 to 70 deg C

Key Specifications

Barcode (EAN-13)	9322190012573
SKU	MAT06MM-E11QM
Brand	Matchmaster
Product Type	Coax Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	An RG11 metre marked cable with quadshield messengered Suitable and approved for Pay and Digital TV Catenary wire for overhead installation
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	06MM-E11QM
Bend Radius	Single: 50 mm/Typical: 100 mm
Braid Material	Al-Mg Alloy Wire
Capacitance	54 pF/mtr
Conductor Diameter	inchner: 1.63 +/-0.015 mm/Outer: 7.32 +/-0.15 mm
Insulation Material	Physically Foamed PE
Insulation Resistance	>1x10 power of 4 MOhm.km
Overall Diameter	10.34 +/-0.2 mm
Pulling Tension	384 N
Screen Material	Non-Bonded Aluminium/PET/Aluminium Tape
Sheath Material	Fire Resistant PVC
Sheath Colour	Black
Temperature	-40 to 70 deg C
