Matchmaster 2 Way TV Antenna Splitter 1 Port Power Pass F Type Connector

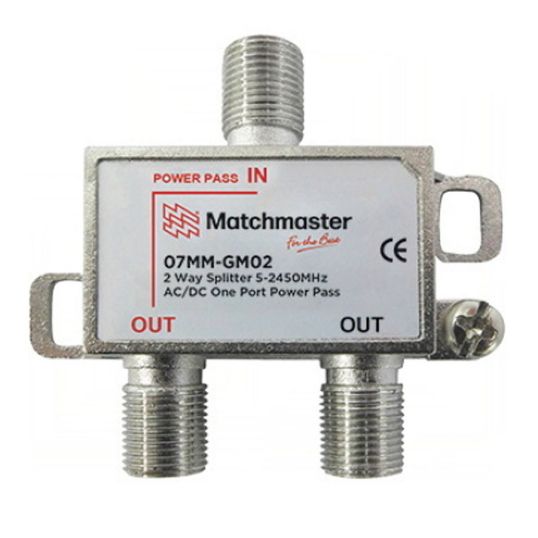

$Matchmaster\Matchmaster_07MM-GM02.JPG$

Description

The 07MM-GM02 is an A-Class 2 way 'F' type splitter covering frequencies from 5 to 2450Mhz, making it ideal for satellite and terrestrial connections. The GM02 is a single port power pass splitter supporting both AC and DC voltage throughput and can also power in reverse via the input port to the output (power pass leg only). The GM series splitters are available from 2 way to 8 way to cater for all of your needs.

Key Specifications

Barcode (EAN-13)	9322190002703
SKU	MAT07MM-GM02
Brand	Matchmaster

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC/DC single port power pass 10dB extra screening with soldered back High precision 'F' type ports for secure connections High isolation between outputs
Standard Pack Size	1
UNSPSC Class	43221700
UOM	EA
Vendor Product	07MM-GM02
Connection Type	F-Type
Frequency	5-2450 MHz
For Use With	TV Antenna
Insertion Loss	3.9-5 dB
Out-Tap	>25 dB
Please Note	AC/DC 1 Power Pass
Product Type	simple
