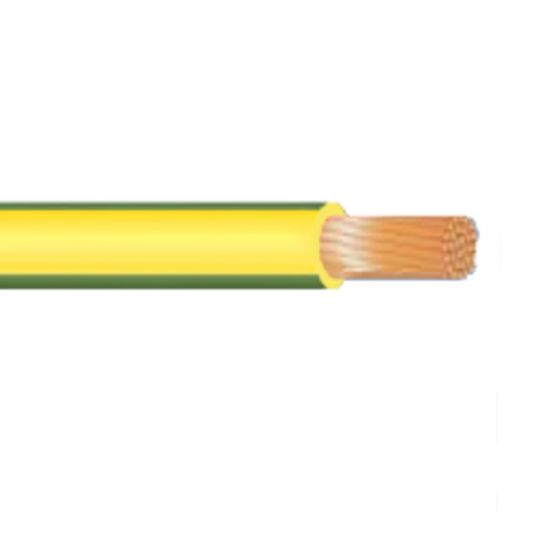

MEC Cables 50mm Building Wire Green/Yellow 100mtr

Description

Building Wire, 50 mm, Class 5 Annealed Copper, 0.6-1 kV, 0.3 mm Nominal Diameter, 12.7 mm Overall Diameter, 100 mtr Length, 50 mm Bend Radius, 1.4 mm Insulation Thickness, 0.386 Ohm/km Conductor Resistance, V-90 PVC Insulation, Green/Yellow Insulation, AS/NZS 5000.1

Key Specifications

SKU	MCBBR1C0500
Brand	MEC Cables
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BR1C0500
Voltage	0.6-1 kV
Conductor Size	50 mm
Conductor Type	Class 5 Annealed Copper
Overall Diameter	12.7 mm
Bend Radius	50 mm
Conductor Resistance	0.386 ohm/km
Insulation Colour	Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	1.4 mm
Nominal Diameter	0.3 mm
Standards	AS/NZS 5000.1
