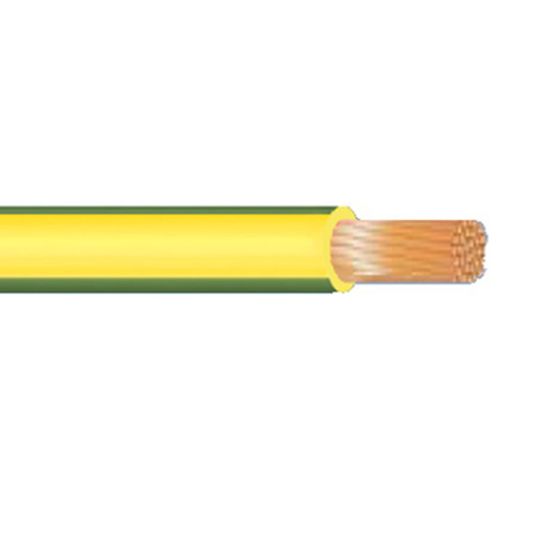

MEC Cables 185mm Building Wire Green/Yellow 100mtr
Loading...
Description
Building Wire, 185 mm, Class 5 Annealed Copper, 0.6-1 kV, 1342/0.4 mm Strands, 22.5 mm Overall Diameter, 100 mtr Length, 135 mm Bend Radius, 2 mm Insulation Thickness, 0.106 Ohm/km Conductor Resistance, X-HF-110 Insulation, Green/Yellow Insulation, AS/NZS 1125 AS/NZS 5000.1
Key Specifications
| SKU |
MCBER1C1850
|
|---|---|
| Brand |
MEC Cables
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | ER1C1850 |
| Conductor Resistance | 0.106 Ohm/km |
| Bend Radius | 135 mm |
| Conductor Type | Class 5 Annealed Copper |
| Conductor Size | 185 mm |
| Insulation Colour | Green/Yellow |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 2 mm |
| Overall Diameter | 22.5 mm |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Stranding | 1342/0.4 mm |
| Voltage | 0.6-1 kV |
