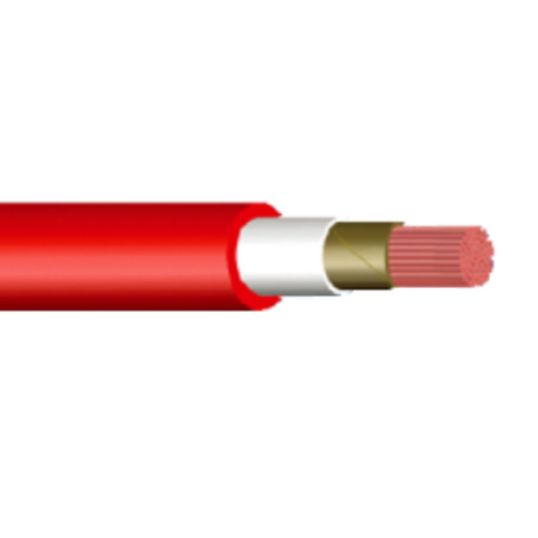

MEC Cables 240 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 100mtr

Description

Fire Rated Cable, 240 mm, Copper, 0.6-1 kV, 1 Core, 28.6 mm Overall Diameter, 100 mtr Length, 192 mm Bend Radius, 1.7 mm Insulation Thickness, 1.7 mm Sheath Thickness, 0.0801 Ohm/km Conductor Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3013

Key Specifications

SKU	MCBFR1C2400
Brand	MEC Cables
Product Type	Fire Rated Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FR1C2400
AS3013 Rating	WS52W
Bend Radius	192 mm
Conductor Resistance	0.0801 Ohm/km
Conductor Size	240 mm
Conductor Type	Copper
Insulation Material	X-HF-110
Insulation Thickness	1.7 mm
Number of Cores	1 Core
Overall Diameter	28.6 mm
Sheath Colour	Red
Sheath Material	HFS-110-TP
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3013
Sheath Thickness	1.7 mm
Temperature	90 deg C
Voltage	0.6-1 kV
