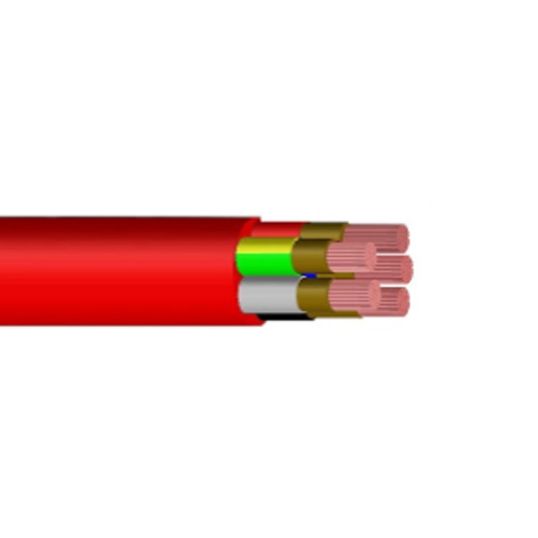

MEC Cables 35 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 100mtr

Description

Fire Rated Cable, 35 mm, Class 5 Copper, 0.6-1 kV, 4 Core + Earth, 10 mm Earth Conductor, 31.3 mm Overall Diameter, 100 mtr Length, 188 mm Bend Radius, 0.9 mm Insulation Thickness, 1.8 mm Sheath Thickness, 0.554 Ohm/km Conductor Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Red Sheath, WS52W, 25 to 40 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3013

Key Specifications

SKU	MCBFR4C0350E
Brand	MEC Cables
Product Type	Fire Rated Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FR4C0350E
AS3013 Rating	WS52W
Bend Radius	188 mm
Conductor Resistance	0.554 Ohm/km
Conductor Size	35 mm
Conductor Type	Class 5 Copper
Earth Conductor Size	10 mm
Insulation Material	X-HF-110
Insulation Thickness	0.9 mm
Number of Cores	4 Core + Earth
Overall Diameter	31.3 mm
Sheath Colour	Red
Sheath Material	HFS-110-TP
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3013
Sheath Thickness	1.8 mm
Temperature	25 to 40 deg C
Voltage	0.6-1 kV
