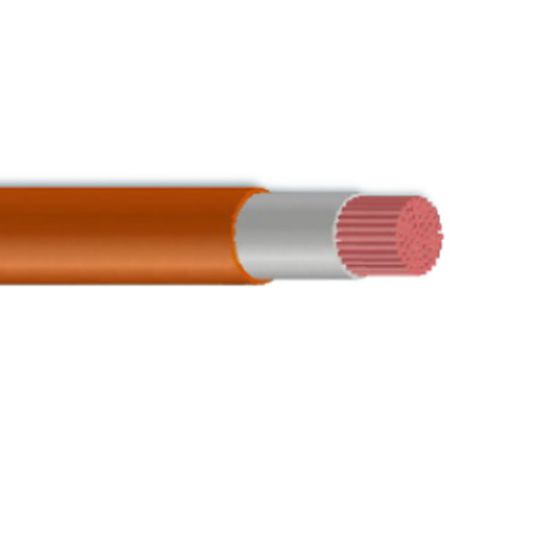

MEC Cables Flexible Cable 1 Core 500mm 0.6/1 kV Copper XLPE/PVC Orange

Description

Flexible Cable, 500 mm, Class 5 Annealed Copper, 0.6-1 kV, 1 Core, 0.5 mm Nominal Diameter, 38.8 mm Overall Diameter, 233 mm Bend Radius, 2.2 mm Insulation Thickness, 2 mm Sheath Thickness, 0.0384 Ohm/km Conductor Resistance, 0.0384 Ohm/km Insulation Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1660.5.6 IEC 60332-1

Key Specifications

SKU	MCBXP1C5000
Brand	MEC Cables
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121500
UOM	MTR
Vendor Product	XP1C5000
Bend Radius	233 mm
Conductor Resistance	0.0384 Ohm/km
Conductor Size	500 mm
Conductor Type	Class 5 Annealed Copper
Insulation Colour	Natural
Insulation Material	X-90 XLPE
Insulation Thickness	2.2 mm
Insulation Resistance	0.0384 Ohm/km
Nominal Diameter	0.5 mm
Number of Cores	1 Core
Overall Diameter	38.8 mm
Sheath Colour	Orange
Sheath Thickness	2 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 1660.5.6 IEC 60332-1
Temperature	90 deg C
Voltage	0.6-1 kV
