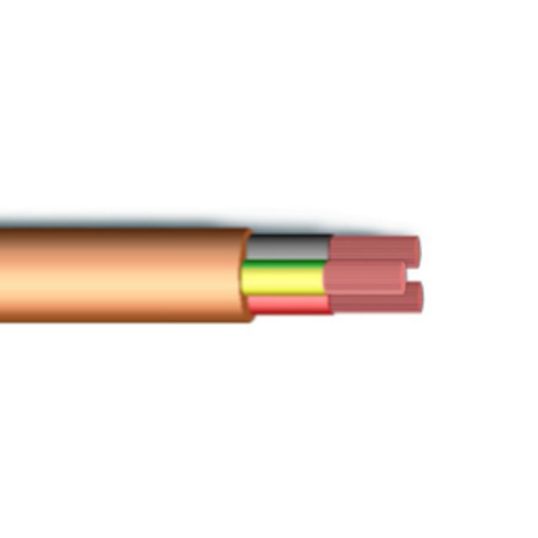

MEC Cables Flexible Power Cable 4x70+1x25E Copper 0.6/1kV 2 Core XLPE/PVC

Description

Flexible Cable, 4x70 mm + 1x25 mm Earth, Class 5 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 39.6 mm Overall Diameter, 0.4 mm Earth Conductor, 100 mm Bend Radius, 1.1 mm + 0.9 mm Earth Insulation Thickness, 2 mm Sheath Thickness, 0.272 Ohm/km Conductor Resistance, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 3013 AS/NZS 1660.5.6 AS/NZS 5000.1

Key Specifications

SKU	MCBXP4C0700E
Brand	MEC Cables
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XP4C0700E
Bend Radius	100 mm
Conductor Resistance	0.272 Ohm/km
Conductor Type	Class 5 Annealed Copper
Earth Conductor Size	0.4 mm
Insulation Material	X-90 XLPE
Insulation Thickness	1.1 mm + 0.9 mm Earth
Number of Cores	4 Core + Earth
Overall Diameter	39.6 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	2 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3013 AS/NZS 1660.5.6 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
