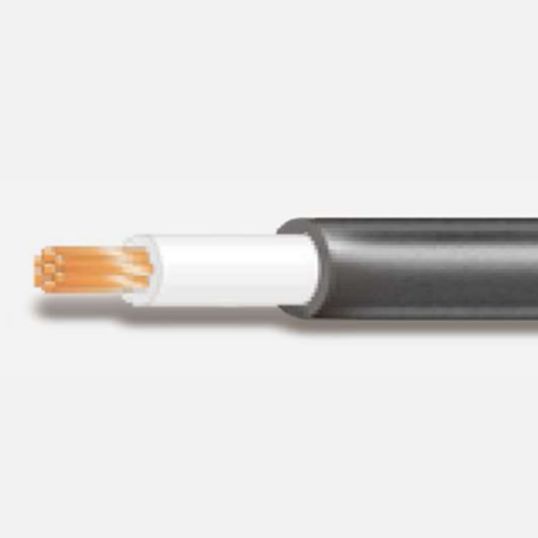

MEC Cables XV Series Circular Cable 1 Core 150mm 0.6/1kV Copper XLPE/PVC
Loading...
Description
Circular XLPE Cable, 150 mm, Class 2 Copper, 0.6-1 kV, 1 Core, 30 Strands, 20.5 mm Overall Diameter, 173 mm Bend Radius, 1.4 mm Insulation Thickness, 1.6 mm Sheath Thickness, DC: 0.316 Ohm/km Conductor Resistance, X-90 XLPE Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1, UV Resistant
Key Specifications
| SKU |
MCBXV1C1500
|
|---|---|
| Brand |
MEC Cables
|
| Product Type |
Cables Circular
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | XV1C1500 |
| Bend Radius | 173 mm |
| Conductor Resistance | DC: 0.316 Ohm/km |
| Conductor Size | 150 mm |
| Conductor Type | Class 2 Copper |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.4 mm |
| Overall Diameter | 20.5 mm |
| Number of Cores | 1 Core |
| Please Note | UV Resistant |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.6 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |
| Stranding | 30 |
| Voltage | 0.6-1 kV |
