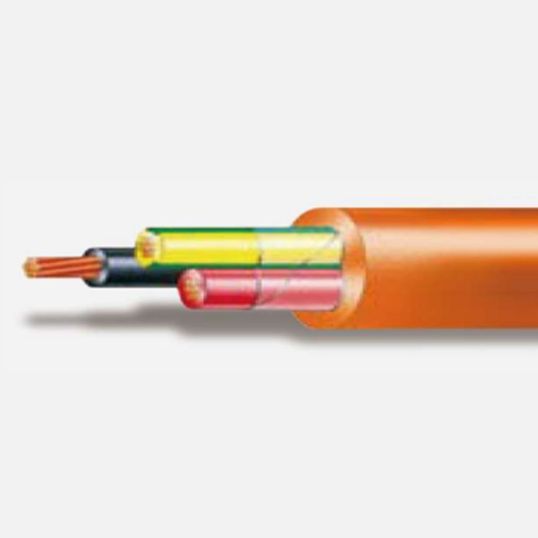

MEC Cables 35 mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr

Description

Circular Cable Unarmoured, 35 mm, Annealed Copper, 0.6-1 kV, Buried Direct: 250 Amp/Underground Wiring Enclosure: 154 Amp, 2 Core + Earth, 7 Strands, 22 mm Overall Diameter, 10 mm Earth Conductor, 100 mm Bend Radius, 0.9 mm + 0.7 mm Earth Insulation Thickness, 1.8 mm Sheath Thickness, X-90 XLPE Insulation, Red/Black/Green/Yellow Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808

Key Specifications

SKU	MCBXV2C0350E
Brand	MEC Cables
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	UV resistant
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XV2C0350E
Bend Radius	100 mm
Conductor Size	35 mm
Conductor Type	Annealed Copper
Current	Buried Direct: 250 Amp/Underground Wiring Enclosure: 154 Amp
Earth Conductor Size	10 mm
Insulation Colour	Red/Black/Green/Yellow
Insulation Material	X-90 XLPE
Insulation Thickness	0.9 mm + 0.7 mm Earth
Number of Cores	2 Core + Earth
Overall Diameter	22 mm
Sheath Material	5V-90 PVC
Sheath Colour	Orange
Standards	AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808
Sheath Thickness	1.8 mm
Stranding	7
Temperature	90 deg C
Voltage	0.6-1 kV
