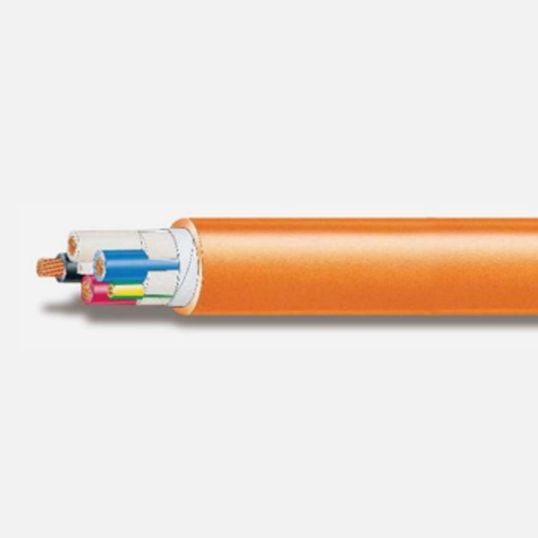

MEC Cables 25mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 100mtr

Description

Circular Cable Unarmoured, 25mm, Annealed Copper, 0.6-1 kV, Buried Direct: 143 Amp/Underground Wiring Enclosure: 107 Amp, 3 Core + Earth, 7 Strands, 23.7mm Overall Diameter, 6mm Earth Conductor, 160mm Bend Radius, 0.9mm + 0.7mm Earth Insulation Thickness, 1.8mm Sheath Thickness, X-90 XLPE Insulation, Red/White/Blue/Black/Green/Yellow Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808

Key Specifications

SKU	MCBXV4C0250E
Brand	MEC Cables
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	UV resistant
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XV4C0250E
Bend Radius	160 mm
Conductor Size	25 mm
Conductor Type	Annealed Copper
Current	Buried Direct: 143 Amp/Underground Wiring Enclosure: 107 Amp
Earth Conductor Size	6 mm
Insulation Colour	Black/Blue/Red/White/Green/Yellow
Insulation Material	X-90 XLPE
Insulation Thickness	0.9 mm + 0.7 mm Earth
Number of Cores	3 Core + Earth
Overall Diameter	23.7 mm
Sheath Material	5V-90 PVC
Sheath Colour	Orange
Standards	AS/NZS 1125 AS/NZS 5000.1 AS/NZS 3808
Sheath Thickness	1.8 mm
Stranding	7
Temperature	90 deg C
Voltage	0.6-1 kV
