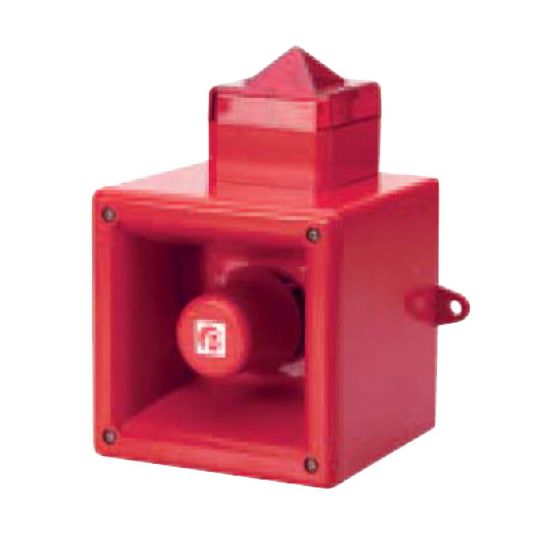

E2S AL121 Electronic Alarm Sounder and Strobe Beacon 126 dB at 1 m 230 VAC Red Housing Red Lens

Description

Electronic Alarm Sounder and Strobe Beacon, 230 Volt AC, 120 mA Sounder, 35 mA Beacon, 126 dB at 1mtr, Xenon Lamp, Light Output: 200 cd, 45 Tones Sound, 5 J Flash, 3 Stage Alarm, Flash Rate: 60 fpm, 2 x M20 Knockout Connection, IP66, Flame Retardant ABS, Red Housing, Red Lens, -25-55 deg C, 190mm x 274mm

Key Specifications

SKU	MECESS5131R
Brand	E2S
Product Type	Audible Warning Devices

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Continuous rating Automatic synchronization on multi-sounder systems Sounder and beacon controlled independently Volume control Three stage alarm (reverse polarity stage switching on DC units)
Standard Pack Size	1
UNSPSC Class	46171600
UOM	EA
Vendor Product	ESS5131R
Colour	Red Housing/Red Lens
Alarm	3 Stage
Connection Type	2 x M20 Knockout
Current	120 mA Sounder/35 mA Beacon
Dimensions	190 mm x 274 mm
Flash Energy	5 J
Flash Rate	60 fpm
IP Rating	IP66
Lamp Type	Xenon
Light Output	200 cd
Material	Flame Retardant ABS
Sound Frequency	45 Tones
Sound Level	126 dB at 1 mtr
Temperature	-25-55 deg C
Voltage	230 Volt AC
