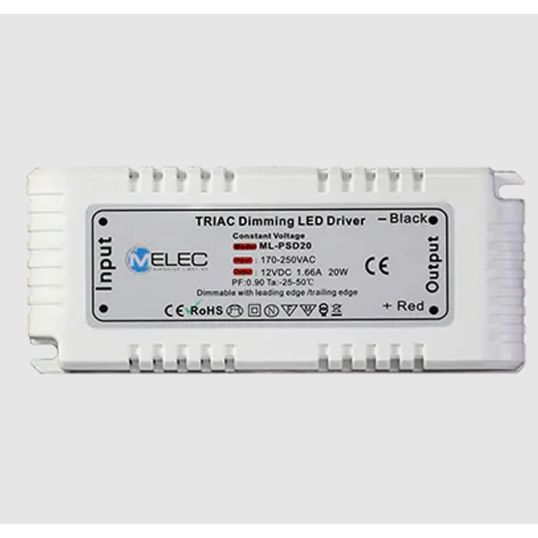

M-Elec LED Driver Constant Voltage Dimmable 20W 170-250V IP20

Description

LED Driver Constant Voltage Dimmable, Input Voltage: 170-250 Volt AC, Output Voltage: 12 Volt DC, 20 Watt, 1.67 Amp, 47-63 Hz, Dimmable, Max. Load: 20 Watt, IP20, Power Factor: >0.9, -40 to 60 deg C, 110 mm Length, 45 mm Width, 26 mm Height

Key Specifications

Barcode (EAN-13)	9348337003549
SKU	MELML-PSD20
Brand	M-Elec
Product Type	Drivers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Efficiency 82% max Cooling by free air convection Fully isolated plastic case for indoor easy installations Suitable for LED lighting and moving sign applications Working with leading and trailing edge dimmer
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	ML-PSD20
Dimmable	Dimmable
Current	1.67 Amp
Input Voltage	170-250 Volt AC
Frequency	47-63 Hz
IP Rating	IP20
Height	26 mm
Max. Load	20 Watt
Power Factor	>0.9
Output Voltage	12 Volt DC
Width	45 mm
Temperature	-40 to 60 deg C
Wattage	20 Watt
