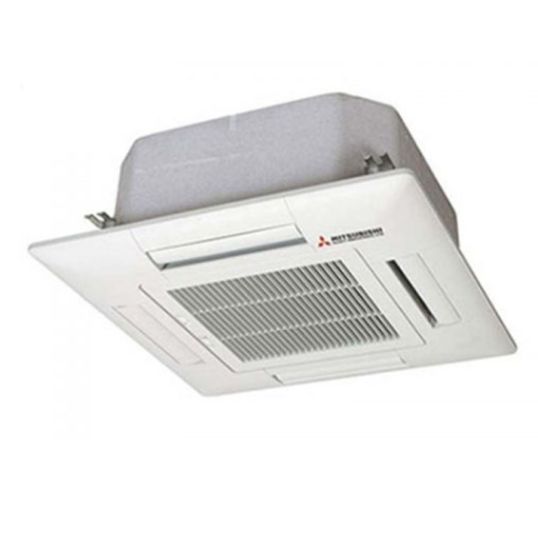

Mitsubishi FDT Series Ceiling Cassette Air Conditioner Set Wired Controller Cooling: 14kW Heating: 16kW 3 Phase R32
Loading...
Description
Ceiling Cassette Air Conditioner Set, 14 kW Cooling, H1: 16 kW, H2: 15.5 kW Heating Capacity, 6.2 Amp Rated Current (Cooling), 6.7 Amp Rated Current (Heating), 633-483-433-317 l/sec Cooling Air Flow Rate, 633-483-433-317 l/sec Heating Air Flow Rate, R32 Refrigerant, 48-42-39-32 dBA Indoor, 54 dBA Outdoor, 3.87 kW Cooling/4.2 kW Heating, 298mm Height x 840mm Width x 840mm Depth Indoor, 1300mm Height x 970mm Width x 370mm Depth Outdoor
Key Specifications
| SKU |
MHIFDT140AVSXWVH
|
|---|---|
| Brand |
Mitsubishi Heavy Industries
|
| Product Type |
Cassete Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDT140AVSXWVH |
| Cooling Air Flow Rate | 633-483-433-317 l/sec |
| Cooling Capacity | 14 kW |
| Heating Capacity | H1: 16 kW/H2: 15.5 kW |
| Heating Air Flow Rate | 633-483-433-317 l/sec |
| Indoor Dimensions | 298 mm Height x 840 mm Width x 840 mm Depth |
| Outdoor Dimensions | 1300 mm Height x 970 mm Width x 370 mm Depth |
| Rated Current (Cooling) | 6.2 Amp |
| Refrigerant Type | R32 |
| Rated Current (Heating) | 6.7 Amp |
| Sound Level | 48/42/39/32 dBA Indoor 54 dBA Outdoor |
