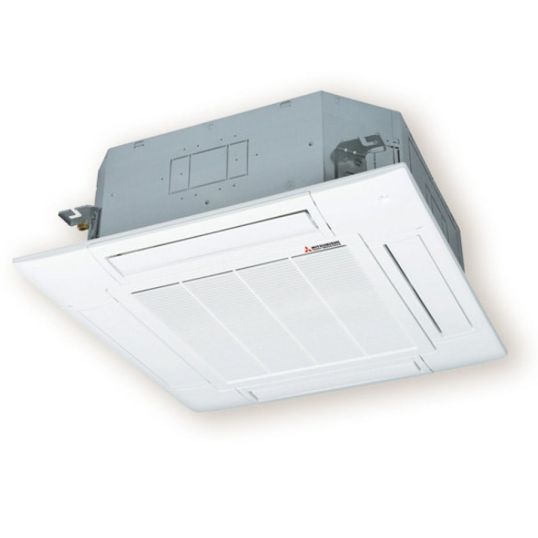

Mitsubishi Heavy Industries Indoor Cassette Air Conditioner 14kW 17A Cooling 16kW 18.3A Heating R32
Loading...
Description
Indoor Cassette Air Conditioner, 14 kW Cooling Capacity, 16 kW Heating Capacity, 17 Amp Rated Current (Cooling), 18.3 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 633 High: 483 l/sec, Heating Air Flow Rate: Medium: 433 Low: 317 l/sec, R32 Refrigerant, 54/71 dBA, 380-415 Volt 50 Hz 3 PH, 298mm x 840mm x 840mm Indoor Dimensions, 1300mm x 970mm x 370mm Outdoor Dimensions,-15 to 50 deg C Cooling,-20 to 20 deg C Heating
Key Specifications
| SKU |
MHIFDT140VH
|
|---|---|
| Brand |
Mitsubishi
|
| Product Type |
Cassete Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDT140VH |
| Cooling Air Flow Rate | P-Hi: 633 Hi: 483 l/sec |
| Cooling Capacity | 14 kW |
| Heating Air Flow Rate | Med: 433 Low: 317 l/sec |
| Heating Capacity | 16 kW |
| Indoor Dimensions | 298 mm x 840 mm x 840 mm |
| Outdoor Dimensions | 1300 mm x 970 mm x 370 mm |
| Power Supply | 380-415 Volt 50 Hz 3 PH |
| Sound Level | 54/71 dBA |
| Refrigerant Type | R32 |
| Rated Current (Cooling) | 17 Amp |
| Rated Current (Heating) | 18.3 Amp |
| Temperature | -15 to 50 deg C Cooling-20 to 20 deg C Heating |
