Mitsubishi 4 kW Cooling 4.5 kW Heating 3.4A Cooling 3.5A Heating R32

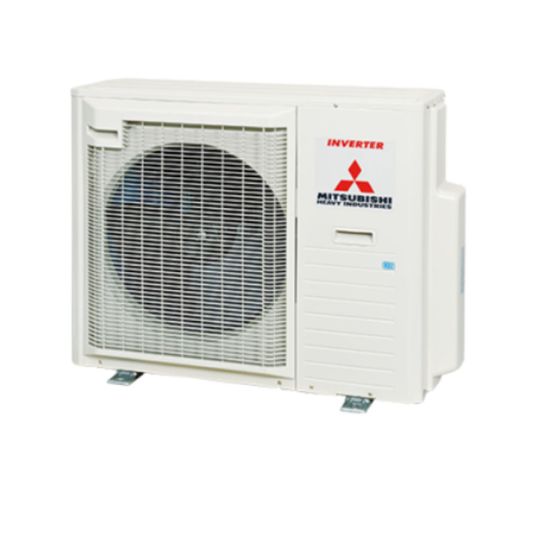

$Mitsubishi\Mitsubishi_SCM40ZS-W.JPG$

Description

With the ability to connect up to five indoor units to a single outdoor unit, the SCM-ZS-W series of multi-split systems offers a compact and versatile solution for cooling and heating multiple rooms. Thanks to improved component design, the SCM-ZS-W series boasts super quiet operation while also delivering high energy efferences. The ability to control each indoor unit independently offers even further energy savings while also providing complete control.. The SCM series of multi-split system outdoor units delivers an efficient and flexible solution for heating and cooling multiple rooms. Ranging from 4 kW up to 10 kW, the SCM series can be connected to up to 5 indoor units.

Key Specifications

SKU	MHISCM40ZS-W
Brand	Mitsubishi

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Connect up to 5 indoor units to 1 outdoor unit Individual control over each room Energy efficient solution for multiple rooms Wide range of indoor units to suit any space Super quiet operation
Standard Pack Size	1
UNSPSC Class	40101700
UOM	EA
Vendor Product	SCM40ZS-W
Cooling Capacity	4 kW
Cooling Air Flow Rate	32.5 cu-m-min
Heating Air Flow Rate	32.5 cu-m-min
Heating Capacity	4.5 kW
Power Supply	220-240 Volt / 50 Hz / 1 Phase
Rated Current (Cooling)	3.4 Amp
Rated Current (Heating)	3.5 Amp
Outdoor Dimensions	595 mm Height x 780 mm Width x 290 mm Depth
Refrigerant Type	R32
Sound Level	Pressure Level Cooling : 49 dBA / Pressure Level Heating: 51 dBA / Power Level Cooling: 62 dBA /Power Level Heating: 64 dBA
Temperature	-15 to 46 deg C Cool / -15 to 24 deg C Heat
