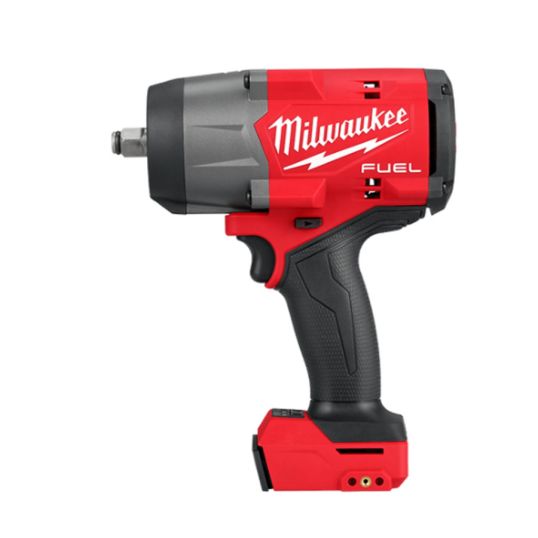

Milwaukee High Torque Impact Wrench With Friction R inchg Gen3 6 Ah 1/2 inch 18 Volt

chevron-left
loader
Loading...

Description

chevron-down
The M18 FUEL 1/2 inch High Torque Impact Wrench w/ Friction Ring provides maximum power density and greater access in tight spaces, maximising productivity through faster bolt removal speeds. The POWERSTATE Brushless Motor delivers up to 1,627 Nm of Fastening Torque and 2170 Nm of Nut-Busting Torque when paired with the M18 REDLITHIUM FORGE 6.0 Ah Battery, while the compact size at 193 mm in length gives users greater access in tight spaces. The new battery isolation system provides a secure battery connection and controls vibration transmitted to the pack. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF control applies no more than 68Nm of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Mode that delivers users full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. The 1/2 inch Friction Ring design allows for quick and tool-free socket changes.

Key Specifications

chevron-down
Barcode (EAN-13)
4892210223982
SKU
MIWM18FHIW2F120
Brand
Milwaukee

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • At only 193 mm in overall length the M18FHIW2F120 offers improved access in tight spaces
  • 4-Mode DRIVE CONTROL provides greater control over output speeds and power, including AUTO SHUT-OFF and Bolt-Removal Mode
  • A new Battery Isolation System provides secure connection and controls vibration transmitted to the battery pack, preventing battery intermittency
  • 1627 Nm of fastening torque and 2170 Nm of nut-busting torque when paired With FORGE 6.0 Ah Battery
Standard Pack Size 1
UNSPSC Class 27112700
UOM EA
Vendor Product M18FHIW2F120
Battery Capacity 6 Ah
Battery Type Lithium Batteries
Battery Voltage 18 Volt
Chuck Type Square Pin Detent
Chuck Size 1/2 inch
Dimensions 193 mm Length
Impacts per Minute 0-1300/0-2200/0-2400/0-2400 ipm
Speed 0-700/0-1300/0-2000 rpm No Load
Product Type simple
Torque Rating 1627 Nm/2170 Nm Nut Busting
