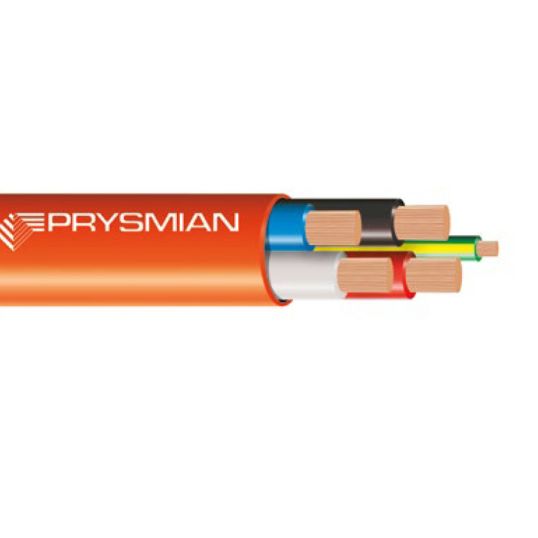

Flexible Cable 0.6/1KV 25X4C+E XLPE/PVC Orange
Loading...
Description
Flexible Cable 0.6/1KV 25X4C+E XLPE/PVC Orange
Key Specifications
| SKU |
MMC20278332
|
|---|---|
| Brand |
Prysmian
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20278332 |
| Bend Radius | 100 mm |
| Conductor Resistance | 0.727 Ohm/km |
| Conductor Size | 25 mm |
| Conductor Type | Class 5 Annealed Copper |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 0.9 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 24-25.1 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | -15 to 90 deg C |
