Prysmian Flextreme Flexible Cable 1 Core 500mm 0.6/1kV Copper X-HF-110/Thermoplastic Rubber Natural/Orange

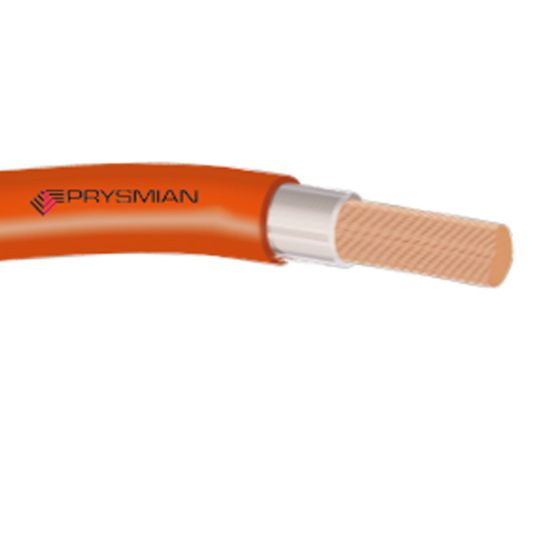

$Prysmian\Prysmian_Flextreme-110-0.6-1KV.JPG$

Description

Flexible Cable, 500 mm, Annealed Copper, 0.6-1 kV, 1 Core, 30.5 mm Nominal Diameter, 39.1 mm Overall Diameter, 235 mm During Installation/160 mm After Installation Bend Radius, 2.2 mm Insulation Thickness, X-HF-110 Insulation, TPR Sheath, Orange Sheath, -40 to 110 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835224771
SKU	MMC5001CFFX110OR
Brand	Prysmian
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Extreme flexibility Superior cable management Long-life performance Safety performance that ensures peace of mind Quality superior manufacturing and support
Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	20408341
Bend Radius	235 mm During Installation - 160 mm After Installation
Conductor Size	500 mm
Conductor Type	Annealed Copper
Insulation Material	X-HF-110
Insulation Thickness	2.2 mm
Nominal Diameter	30.5 mm
Number of Cores	1 Core
Overall Diameter	39.1 mm
Sheath Colour	Orange
Sheath Material	TPR
Standards	AS/NZS 5000.1
Temperature	-40 to 110 deg C
Voltage	0.6-1 kV
