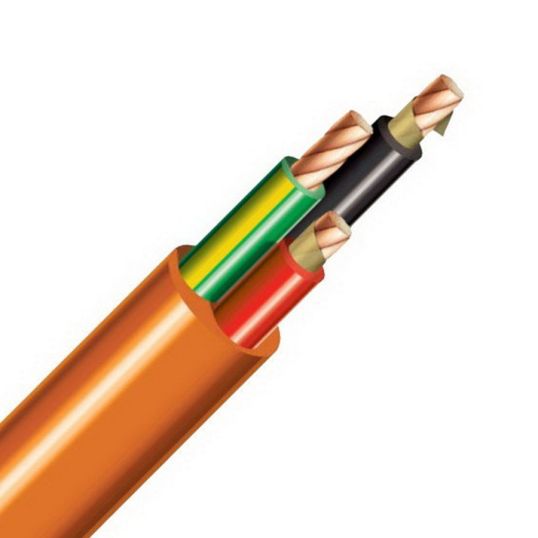

Prysmian 2.5 mm Fire Rated Cable X-90 XLPE/HFS-90-TP Orange 500mtr
Loading...
Description
Fire Rated Cable, 2 Core & Earth, 2.5 mm, Stranded Plain Annealed Copper, 0.6/1 kV, 13.4 mm Overall Diameter, X-90 XLPE Insulation Mica Glass Tape Flame Barrier, HFS-90-TP Sheath, Red White Blue Black Green/Yellow Cores, Orange Sheath, WS52W, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835013320
|
|---|---|
| SKU |
MMCCEC02QJRMG7/0.67
|
| Brand |
Prysmian
|
| Range Name |
FireStop FS90
|
| Product Type |
Fire Rated Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199809 |
| AS3013 Rating | WS52W |
| Conductor Size | 2.5 mm |
| Conductor Type | Stranded Annealed Copper |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Insulation Material | X-90 XLPE |
| Number of Cores | 2 Core + Earth |
| Overall Diameter | 13.4 mm |
| Sheath Colour | Orange |
| Sheath Material | HFS-90-TP |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
