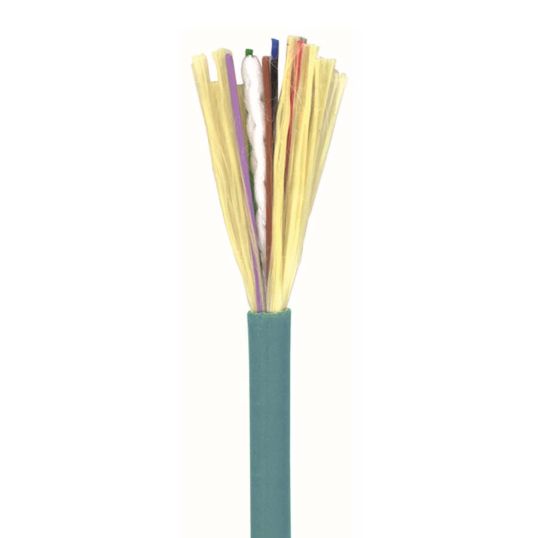

Molex Indoor/Outdoor Riser Fibre Optic Cable Light Duty 6 Core OM4 Multimode LSZH Blue

$Molex\Molex_AFOIR_Series.jpg$

Description

Fibre Optic Cable Indoor/Outdoor Riser, 850 nm: <=3.5 dB/km, 1300 nm: <=1.0 dB/km Attenuation, Full Load: 96mm, No Load: 48mm Bend Radius, >=500->=3500 MHz.km Frequency Bandwidth, OM4, Multimode, 6 Core, 50 +/-2.5 um Fibre Core Diameter, 600 N Tensile Strength, LSZH Sheath, Blue Sheath, White Fibre,-10 to 70 deg C, 4.8mm Outside Diameter

Key Specifications

SKU	MODAFOIR006OM4-BL
Brand	Molex
Product Type	Fibre Optic Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	900um tight buffered Water blocking aramid yarns provides sufficient strength to the cable to avoid damage during installation Low smoke zero halogen sheath RoHS compliant UV stabilised
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	AFOIR006OM4-BL
Attenuation	850 nm: <=3.5 dB/km/1300 nm: <=1.0 dB/km
Bend Radius	Full Load: 96 mm/No Load: 48 mm
Fibre Core Diameter	50 +/-2.5 um
Fibre Mode	Multimode
Fibre Type	OM4
Outside Diameter	4.8 mm
Sheath Colour	Blue
Sheath Material	LSZH
Temperature	-10 to 70 deg C
Tensile Strength	600 N
