Molex External Mini Loose Tube Optical Fibre Cable Singlemode OS1/2 12 Core Blue 6.3mm OD

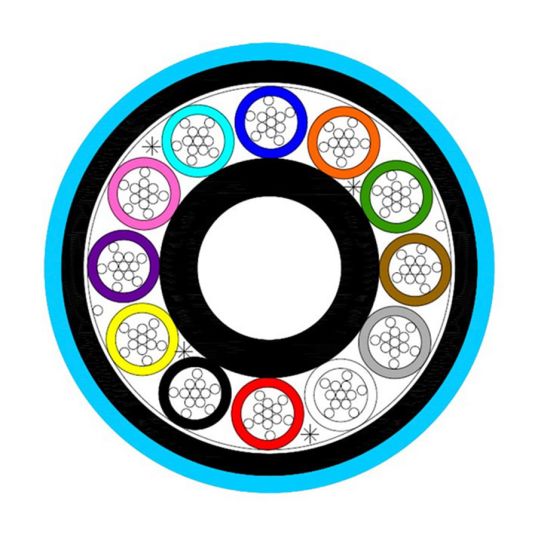

This loose tube dielectric optical cable is designed for external underground installations in (micro) ducts by pulling, blowing or floating techniques. Polyamide provides anti-termite protection and rodent resistance. Optimized for blowing in mini ducts of 10 mm diameter (internal). Made up of a multi-loose tube construction-2 to 144 fibres, the tube is made of a thermoplastic material, containing up to 12 optical fibres filled with a low viscosity , thixotropic, non-melting gel fully compatible with fibre coating and tube material, a glass GRP strength member and water swellable elements (drycore) providing longitudinal water tightness. The inner sheath is made up of a UV stabilized polyethylene in compliance with AS 1049. The hard jacket is a UV stabilized polyamide (Nylon) in compliance with AS 1049 integrally bonded to PE inner sheath. The outer sheath is a UV stabilized polyethylene in compliance with AS 1049. Two ripcords provided beneath the sheath for easy removal.
