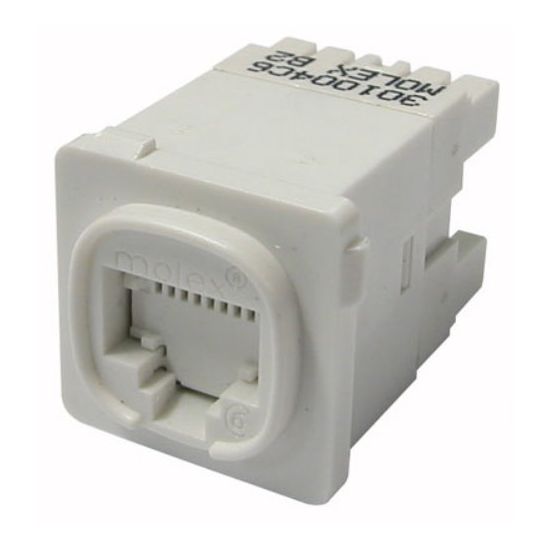

Molex PowerCat 6 Module Clip DataGate Jack CAT6 RJ45 T568A/B Polycarbonate White

Description

Module Clip DataGate Jack, Solid: 22-24 AWG, 2.5 mOhm Contact Resistance, >100 MOhm Insulation Resistance, IDC Termination, CAT6 Cable, Wiring Scheme: T568A/B, Flammability: UL94-V0, Copper Alloy Contact, Polycarbonate Housing, White, 23.5mm Height, 17.9mm Width, 30.53mm Depth, Cat6 DataGate White

Key Specifications

SKU	MODMMC-00010-02
Brand	Molex

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Patented spring-loaded shutter: prevents incomplete mating and protects from dust and contaminants Patented IDC V-shaped contacts that flex not fatigue when terminated Features pointed IDC towers to speed termination and enhance cable retention Dual colour-coding allows for 568 A/B wiring configuration Can be terminated using industry standard punchdown tools RJ-11 & RJ-12 compatible Allows rear and side entry cable termination Engineered for use with Clipsal and HPM wallplate systems
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	MMC-00010-02
Cable Type	CAT6
Colour	White
Conductor Size	Solid: 22-24 AWG
Contact Material	Copper Alloy
Depth	30.53mm
Height	23.5mm
Housing Material	Polycarbonate
Please Note	Cat6 DataGate White
Width	17.9mm
