MSS Fibre Systems Fibre Optic Cable Singlemode Loose Tube Underground 12 Fibre PE/Nylon Blue

$MSS_Fibre_Systems\MSS_Fibre_Systems_CAB-LT-XX-SM.jpg$

Description

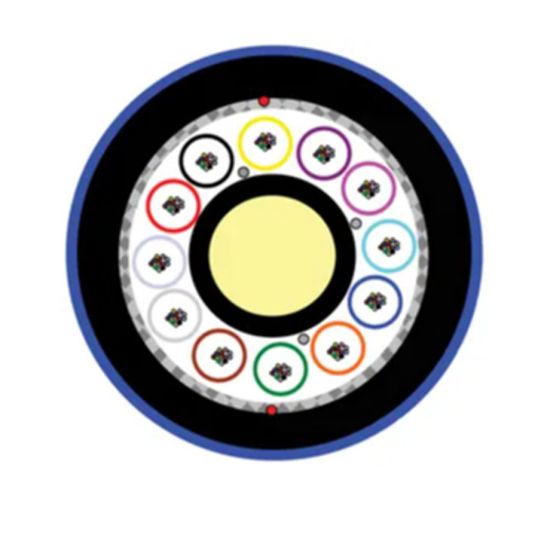

A Termite resistant Loose tube cable featuring a non-metallic strength member, gel filled tubes and a dry block core, for use in both direct bury and conduit/duct applications. The Thixotropic gel filled tubes and water swellable yarns (dry core) prevent water ingress while the non-metallic glass fibre reinforced plastic central strength member maintains excellent tensile strength. This standard loose tube construction features an inner UV resistant Polyethylene (PE) sheath and an outer termite/UV resistant Polyamide Nylon jacket. Other options include Composite (MM + SM), Sacrificial Sheath and CST Armour.

Key Specifications

Barcode (EAN-13)	9318674984481
SKU	MSDCAB-LT-12-SM
Brand	MSS Fibre Systems

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Blue UV and Insect/Termite resistant Nylon (Polyamide) Jacket Black PE (Polyethylene) UV resistant Inner sheath Polyester based rip cords for easy sheath removal Water blocking tape and swellable yarns prevent ingress into the core Thixotropic gel filled tubes prevent water ingress into the tubes Non-metallic fibre reinforced plastic rod central strength member provides tensile strength
Standard Pack Size	1
UNSPSC Class	43223300
UOM	MTR
Vendor Product	CAB-LT-12-SM
Attenuation	0.35 dB/km at 1310 Nm - 0.35 dB/km at 1383 Nm - 0.21 dB/km at 1550 Nm - 0.24 dB/km at 1625 Nm
Bend Radius	200 mm Installation/150 mm Long Term
Fibre Count	12
Fibre Mode	Singlemode
Fibre Type	SM/OS2
Number of Fibres	2-72
Outside Diameter	10 mm
Sheath Colour	Black/Blue
Sheath Material	Polyethylene/Nylon
Strength Member	Glass Fibre Reinforced Plastic
Temperature	10 to 70 deg C
Tensile Strength	2 kN
Tube Filling	Thixotropic Gel
Tube Size	2.1 mm
