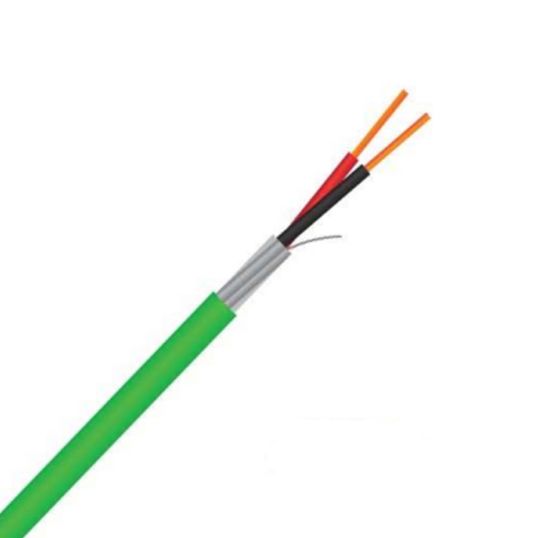

Maser KNX Certified Control Cable 1 Pair 0.8mm 250V Copper/Polyethylene/Overall Shield/LSZH Green

Description

Flexible Control Cable, 0.8 mm, Bare Copper, 250 Volt, 1 Pair, 5.6 mm Overall Diameter, 56 mm Bend Radius, 37.7 Ohm/km Conductor Resistance, 200 MOhm/m Insulation Resistance, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, Black/Red Core, Polyethylene Insulation, LSZH Sheath, Green Sheath, -40 to 70 deg C, IEC 60332-1-2 IEC 61034-1&2 IEC 60754-1&2

Key Specifications

SKU	MSRMAS1PKNX/500M
Brand	Maser
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MAS1PKNX/500M
Bend Radius	56 mm
Conductor Resistance	37.7 Ohm/km
Conductor Size	0.8 mm
Conductor Type	Bare Copper
Core Colours	Black/Red
Insulation Material	Polyethylene
Insulation Resistance	200 MOhm/m
Number of Cores	1 Pair
Overall Diameter	5.6 mm
Screen Material	Aluminium Foil/Polyester Tape/Tinned Annealed Copper Drain Wire
Sheath Colour	Green
Sheath Material	LSZH
Standards	IEC 60332-1-2 IEC 61034-1&2 IEC 60754-1&2
Temperature	-40 to 70 deg C
Voltage	250 Volt
