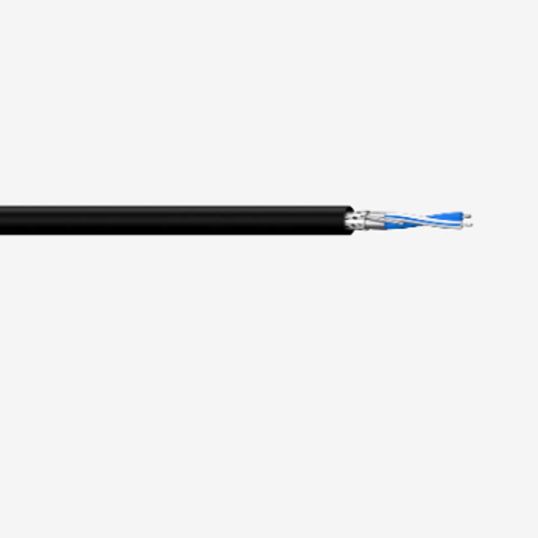

Maser Data Cable 1 Pair Industrial RS-485 22AWG 300V Tinned Copper/Foam PE/Overall Shield/PVC Black

Description

Data Cable, 22 AWG, Tinned Annealed Copper, 300 Volt, 1 Pair, 7/0.25 mm Strands, Overall Screened Screen, 7.1 mm +/-0.2 mm Overall Diameter, 0.6 mm +/-0.05 mm Insulation Thickness, 52 Ohm/km Conductor Resistance, Tinned Copper Braid/Aluminium Foil/Polyester Tape Screen, Foam Polyethylene Insulation, White-Blue/Blue-White Insulation, PVC Sheath, Black Sheath, -20 to 60 deg C

Key Specifications

SKU	MSRMAS1PRS485IND
Brand	Maser
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MAS1PRS485IND
Conductor Resistance	52 Ohm/km
Conductor Size	22 AWG
Conductor Type	Tinned Annealed Copper
Insulation Colour	White-Blue/Blue-White
Insulation Material	Foam Polyethylene
Insulation Thickness	0.6 mm +/-0.05 mm
Number of Pairs	1 Pair
Overall Diameter	7.1 mm +/-0.2 mm
Screen Material	Tinned Copper Braid/Aluminium Foil/Polyester Tape
Sheath Colour	Black
Screen Format	Overall Screened
Sheath Material	PVC
Stranding	7/0.25 mm
Temperature	-20 to 60 deg C
Voltage	300 Volt
