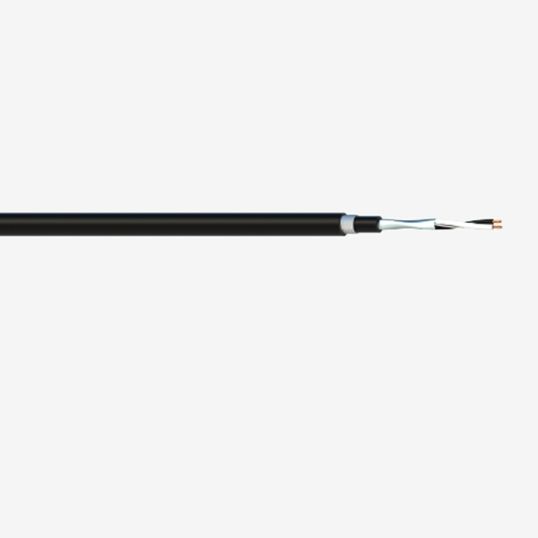

Maser Instrumentation Cable 1 Pair 1.5mm 110/150V Copper PVC/PVC Black

Description

Instrumentation Cable Armoured, 1.5 mm, Stranded Annealed Copper, 110 Volt AC/150 Volt DC, 1 Pair, 7/0.5 mm Strands, Overall Screened Screen, 11.4 mm Overall Diameter, 136.8 mm Bend Radius, 0.4 mm Insulation Thickness, 13.6 Ohm/km Conductor Resistance, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, Galvanised Steel Wire Armour, V-90 PVC Insulation, White & Black Numerals Insulation, 5V-90 PVC Sheath, Black Sheath, -20 to 90 deg C, IEC 60332-3-22 IEC 60079.14 AS/NZS 1125 AS/NZS 3808 AS/NZS 1660

Key Specifications

SKU	MSRMAU5102CSSWA
Brand	Maser
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MAU5102CS SWA
Armour Material	Galvanised Steel Wire
Bend Radius	136.8 mm
Conductor Resistance	13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Stranded Annealed Copper
Insulation Colour	White & Black Numerals
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Number of Pairs	1 Pair
Overall Diameter	11.4 mm
Screen Format	Overall Screened
Screen Material	Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire
Sheath Colour	Black
Standards	IEC 60332-3-22 IEC 60079.14 AS/NZS 1125 AS/NZS 3808 AS/NZS 1660
Stranding	7/0.5 mm
Sheath Material	5V-90 PVC
Temperature	-20 to 90 deg C
Voltage	110 Volt AC/150 Volt DC
