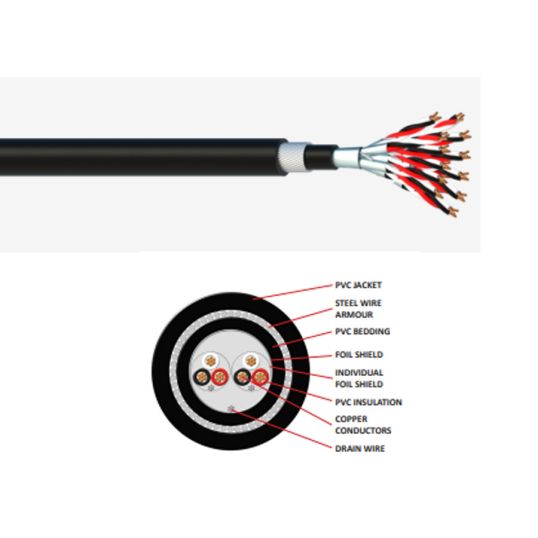

Maser Instrumentation Cable 12 Triad 1.5mm 110/150V PVC/IS & OS/SWA/PVC Black

$Maser\Maser_MAU5612ESCS-SWA.jpg$

Description

Instrumentation Cable 12 Triad, 1.5 mm, Stranded Plain Annealed Copper, 110 Volt AC/150 Volt DC, 13 Amp, 12 Triads Pair, 7/0.5mm Strands, Individual & Overall Screened, 29.1mm Overall Diameter, 349.2mm Bend Radius, 0.4mm Insulation Thickness, 13.6 Ohm/km, Aluminium/Polyester Foil Shield w/Tinned Copper Drain Wire Screen, Single Layer Galvanised (Mild) Steel Wire Armour, V-90 PVC Insulation, Red White & Black Numbered Twisted Triad Insulation, Flame Retardant UV Resistant 5V-90 PVC Sheath, Black Sheath, -20 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 1660

Key Specifications

SKU	MSRMAU5612ESCSSWA
Brand	Maser
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MAU5612ESCS SWA
Bend Radius	349.2 mm
Armour Material	Single Layer Galvanised (Mild) Steel Wire
Conductor Resistance	13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Stranded Annealed Copper
Insulation Colour	Red/White/Black Numerals
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Overall Diameter	29.1 mm
Number of Pairs	12 Triads
Screen Format	Individual & Overall Screened
Screen Material	Aluminium/Polyester Foil Shield w/Tinned Copper Drain Wire
Sheath Material	Flame Retardant UV Resistant 5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660
Temperature	-20 to 90 deg C
Stranding	7/0.5 mm
Voltage	110 Volt AC/150 Volt DC
Sheath Colour	Black
