Netconnect CS41Z1 U/UTP Data Cable Cat6A 4 Pair 24AWG Polyolefin/LSZH Blue 305M

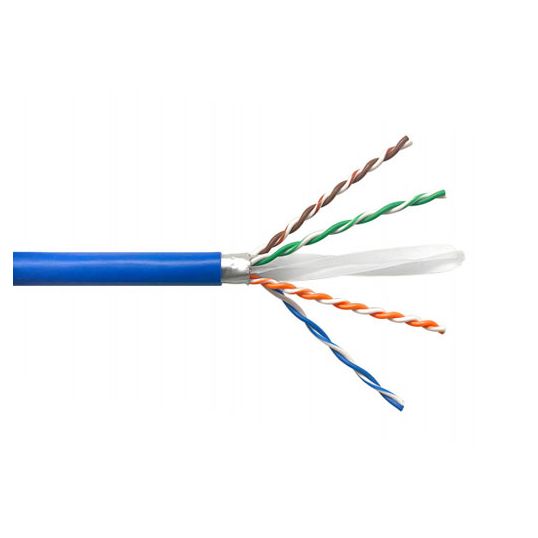

$Netconnect\Netconnect_884041004-10.jpg$

Description

CAT 6A Data Cable U/UTP, 80 Volt, Solid, 24 AWG, 1.0 mm Conductor Diameter, 8 Ohms/100m Conductor Resistance, 500 MHz Frequency Bandwidth, 0.508 mm Sheath Thickness, Poly/Aluminium/Poly, Cat 6A U/UTP Unshielded, 4 Pair, 11.34 kg Max. Pulling Force, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, Blue Sheath, 20 to 60 deg C, 305 mtr Length, 6.9 mm Outside Diameter

Key Specifications

SKU	NCO884041004/10
Brand	Netconnect

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	RL
Vendor Product	884041004/10
Conductor Diameter	1.0 mm
Cable Type	Cat 6A U/UTP Unshielded
Conductor Material	Bare Copper
Conductor Resistance	8 Ohms/100m
Conductor Size	24 AWG
Conductor Type	Solid
Frequency Bandwidth	500 MHz
Insulation Material	Polyolefin
Max. Pulling Force	11.34 kg
Outside Diameter	6.9 mm
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	LSZH
Sheath Thickness	0.508 mm
Shielded Type	Poly/Aluminium/Poly
Temperature	20 to 60 deg C
Voltage	80 Volt
