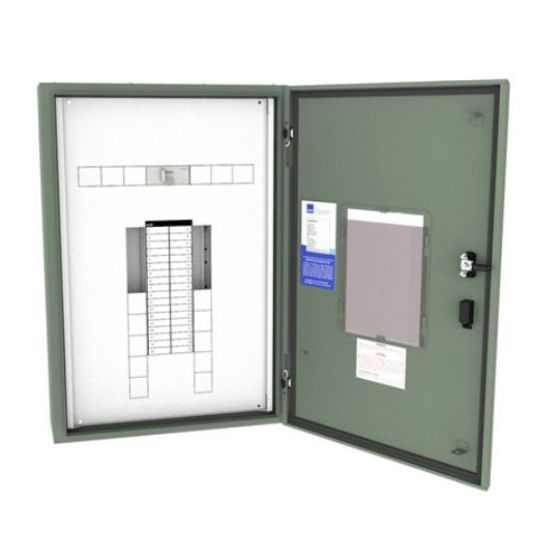

NHP Din-T Modular MCB Panelboard W/160A Main Switch 24P 1.6mm Mild Steel N42 Strom Grey IP30 IP42

$NHP\NHP_Concept-Plus-Din-T-Grey.jpg$

Description

Modular MCB Panelboard, 240 Volt AC at 1 Ph, 415 Volt AC at 3 Ph, 250 Amp Busbar, Number of Poles: 24, Semi Flush Door, For Use With: MCBs, IP30, IP42, 1.6mm Mild Steel, N42 Storm Grey, Powder Coated, 648mm Height x 600mm Width x 200mm Depth

Key Specifications

SKU	NHPCPL24M160G
Brand	NHP
Range Name	Concept Plus Din-T
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Partial type tested busbar system Modular sizes up to 96-way Knockouts for up to 18 modules DIN equipment Accessory modules Removable gland plates Door fitted independent of escutcheon Right hand door hinging Semi flush door swing handle Chassis tee-off isolator option
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	CPL24M160G
Colour	Storm Grey
Configuration	DIN-T 3M-648mm
Current	250 Amp
Dimensions	648mm Height x 600mm Width x 200mm Depth
Finish	Powder Coated
Door Type	Semi Flush
IP Rating	IP30/42
Material	1.6mm Mild Steel
Number Of Poles	24P
Voltage	240-415 Volt
