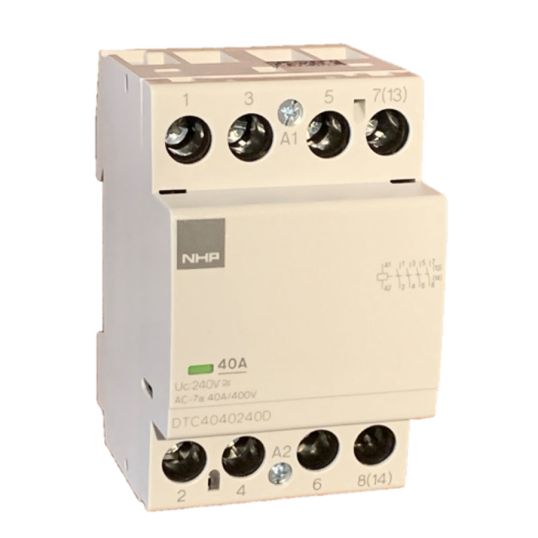

NHP DIN-T DIN Contactor 240VAC/DC Coil 40A 3.7/6.4/11kW 4NO 3P

Description

DIN Contactor, 240 Volt AC/DC Coil Voltage, 3.7/6.4/11 kW AC3 AC3 Rating, 22 Amp AC3 AC3 Rating, 40 Amp AC1 AC1 Rating, 4 Normally Opened Configuration, 3 Pole, Screw Terminal, DIN Rail Mounting, IP20, 55 to 80 deg C, 85 mm Height, 54 mm Width, 58 mm Depth

Key Specifications

SKU	NHPDTC4040240D
Brand	NHP
Product Type	Contactors DIN

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Silent operated, hum free AC/DC coils Integrated surge protection Low power consumption Indicator position flag red/green Space saving, no spacer required 16 Amp and 20 Amp models 9 mm spacer required 25 Amp, 40 Amp and 63 Amp models if duty time 1 hour and ambient >40 deg C Add on auxiliary contact 2NO or 1NO/1NC
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	DTC4040240D
AC3 Rating (kW)	3.7/6.4/11 kW AC3
AC1 Rating (Amps)	40 Amp AC1
Contact Configuration	4 Normally Opened
AC3 Rating (Amps)	22 Amp AC3
IP Rating	IP20
Depth	58 mm
Height	85 mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Operating Coil Voltage	240 Volt AC/DC
Temperature	55 to 80 deg C
Terminal Connection	Screw
Width	54 mm
