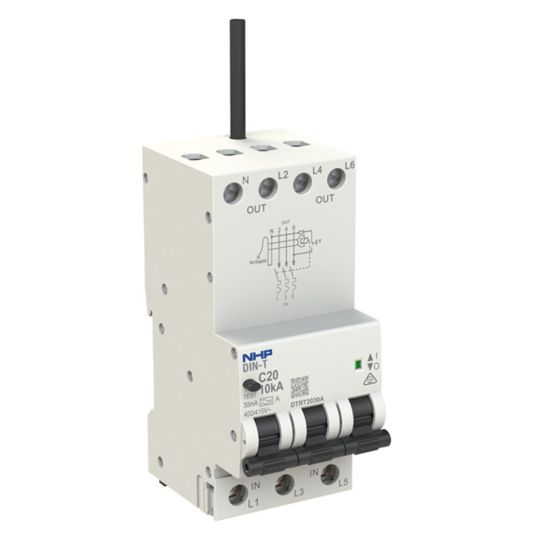

NHP DIN-T RCBO Type A 415 VAC 20 Amp 10 kA 3 Pole + N 30 mA IP40 3 Module 54 mm

$NHP_DIN-T\NHP_DIN-T_RCBO_3P_C_CURVE_Longbody.JPG$

Description

Longbody 3P+N RCBO with only 54mm width suitable for new installation or for retrofit in panelboards. Suits standard 3 Pole busbar chassis due to pigtail wire for neutral line side connection. Red/Green contact position indicator (CPI) that is independent of the toggle position. Perfect for upgrading 3 phase circuits from MCB to RCBO into Concept distribution panelboards.

Key Specifications

Barcode (EAN-13)	9321807006424
SKU	NHPDTRT2030A
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No ESV220008 and RCM Earth leakage protection Type A Pad lockable handle and LOCKDIN compatible Handle sealable in ON and OFF position Suits Concept Panelboards, POWERMAX NC and GB busbar chassis
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTRT2030A
Connection Type	Fork/Pin
Current	20 Amp
Colour	Grey
Depth	77.1 mm
Frequency	50/60 Hz
Height	117.5 mm
Modules	3 Module 54 mm
IP Rating	IP40
Mounting Method	DIN Rail
Interrupt Capacity	10 kA
Number Of Poles	3 Pole
Please Note	Longbody
Temperature	-5 to 55 deg C
Terminal Connection	1-25 sq-mm
Trip Sensitivity	30 mA
Width	54 mm
Voltage	415 Volt AC
Trip Characteristic	C Curve
