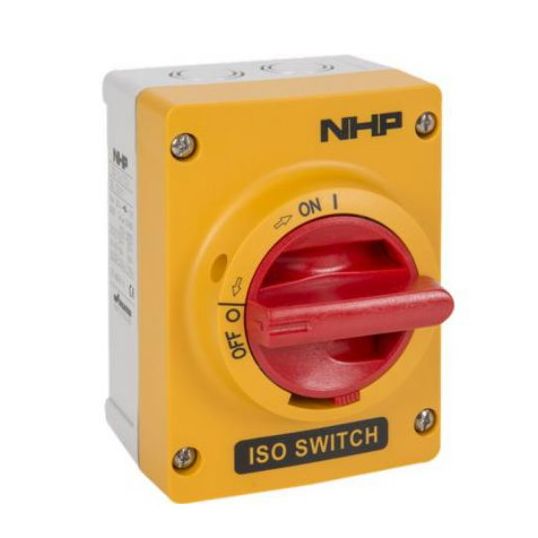

Katko Safety Isolating Switch Surface Mounting 3P 25A 400-690V Yellow/Red IP66

Description

Safety Isolating Switch Surface Mounting, 400-690 Volt AC, 25 Amp, 50/60 Hz, 3 Pole, Polycarbonate, Yellow, IP66, Legend: ON OFF, Rotary, 1.5 to 16 mm, 130.4 mm Height, 96.4 mm Width, 106 mm Depth, -40 to 80 deg C

Key Specifications

Barcode (EAN-13)	9321807003072
SKU	NHPISO325PY
Brand	Katko
Product Type	Isolating Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy to install and operate Choice of larger enclosures for increased wiring space Door interlock when switch is in ON position preventing the unauthorized removal of the enclosure cover for added safety Dedicated ISO TUFF series for arduous industry with 316 stainless steel enclosure and handle with flat roof and sloped roof options to keep accumulation of dirt and other contaminants off the switch LK10 and LK11 handles used on the ISO series are padlockable for added security Snap-on accessories couldn’t be any easier or quicker to install
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ISO325PY
Colour	Yellow
Current	25 Amp
Depth	106 mm
Frequency	50/60 Hz
Height	130.4 mm
IP Rating	IP66
Legend	ON OFF
Method of Operation	Rotary Knobs
Number Of Poles	3 Pole
Temperature	-40 to 80 deg C
Terminal Capacity	1.5-16 mm
Voltage	400-690 Volt
Width	96.4 mm
