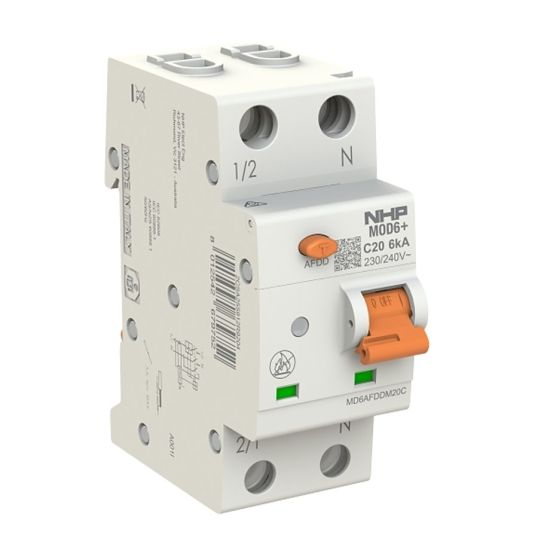

NHP MOD6+ Miniature Circuit Breaker C Curve 240V 6A 6kA 1Pole+N 2Module 35.2mm DIN Rail Mount

$NHP\NHP-MOD6_MD6AFDDMxxC.JPG$

Description

The MOD6+ circuit protection range offers reliable performance and cost effective solutions for both domestic and commercial applications. With seamless integration to our panelboards and loadcentres, the range is certified to AS/NZS standards and provides a minimum genuine 6 kA short circuit rating. Certifications are available online on the National Equipment Registration System (EESS) to ensure transparency in safety and compliance.

Key Specifications

Barcode (EAN-13)	8012542679455
SKU	NHPMD6AFDDM6C
Brand	NHP
Range Name	MOD6+

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	LED AFDD Trip indication Contact position indicator green/red flag (CPI) Switched neutral Suits DIN rail mounting
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MD6AFDDM6C
Actuator Type	Handle
Cable Size	1-25 sq-mm
Depth	75 mm
Frequency	50/60 Hz
Height	85 mm
Interrupt Capacity	6 kA
IP Rating	IP40
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Modules	2 Module 35.2 mm
Temperature	-25 to 55 deg C
Voltage	240 Volt AC
Width	35.2 mm
