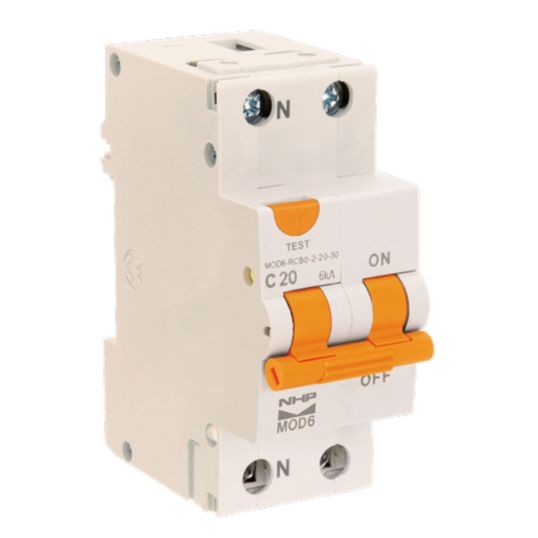

NHP MOD6 RCBO 1 Pole+N 6kA 20A C Curve 30mA Type A RCD No Pigtail

$NHP\NHP_MOD6RCBO22030A.jpg$

Description

Residual Current Device, 230-240 Volt, 20 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, Fork/Pin Connection, IP20/40, DIN Rail Mounting, 5 to 55 de g C, 86 mm Height, 36 mm Width, 76 mm Depth

Key Specifications

SKU	NHPMOD6RCBO22030A
Brand	NHP
Range Name	MOD6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	MOD6 RCBOs feature 6 kA short circuit rating Type A RCD with switched neutral 30 mA sensitivity for general personnel protection applications C trip curve for general light and power applications Fast connection pin/fork bus bar comb Suits pole covers and load centres Approval No NSW17482 or RCM Energy Safe Victoria (ESV) compliant for residential applications 10mA units compliant with Type 1 requirements
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MOD6RCBO22030A
Depth	76 mm
Connection Type	Fork/Pin
Height	86 mm
Current	20 Amp
Frequency	50/60 Hz
Interrupt Capacity	6 kA
IP Rating	IP20/40
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	5 to 55 de g C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230-240 Volt
Width	36 mm
