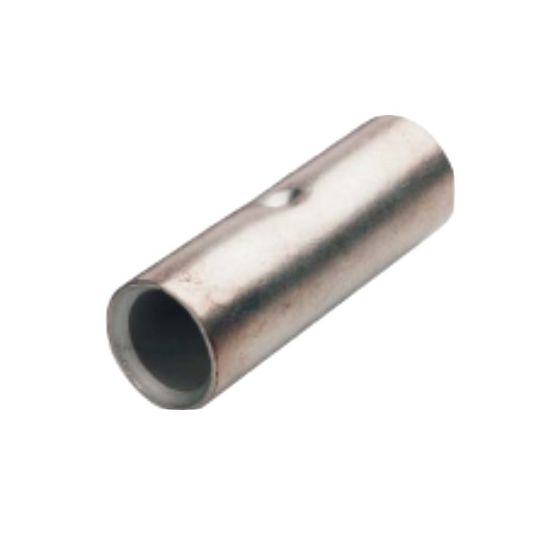

Noremak Crimp Link Standard Copper 6mm 7/1.04 22mm OAL

$Noremak\Noremak_Link.jpg$

Description

Standard Crimp Link, 6 mm, 7/1.04 Strands, 3.8 mm Inside Diameter, 205 Mpa Tensile Strength, 40% Ductile Rating, 1.72 micro-Ohm cm Resistivity, 99.99.25% IACS Conductivity, 4.4 mm A-F Hex Die, 22 mm Overall Length, Annealed Copper Body, Annealed Copper, Tin Electroplated, -55 to 155 deg C

Key Specifications

SKU	NORCCL060
Brand	Noremak

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CCL060
A-F Hex Die	4.4 mm
Body Material	Annealed Copper
Conductive Material	Annealed Copper
Conductivity	99.99.25% IACS
Conductor Size	6 mm
Ductile Rating	40%
Finish	Tin Electroplated
Inside Diameter	3.8 mm
Number of Strands	7/1.04
Overall Length	22 mm
Resistivity	1.72 micro-Ohm/cm
Temperature	-55 to 155 deg C
Tensile Strength	205 MPa
