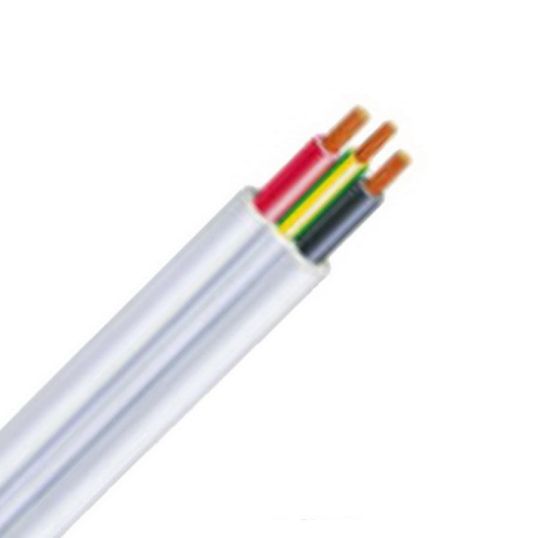

Flat Twin & Earth 2C+E 1/1.13 1mm PVC/PVC White 450/750V

Olex 1mm Flat Twin & Earth Cable White 1mtr


Std Pack Size

You need to be registered and logged in to view product details and pricing

Flat Twin & Earth Cable, 2 Core & Earth, 1 mm, Solid Copper, 450/750 Volt, 1/1.13 mm Strands, 1 mm Earth Conductor, 8.9 mm x 4.2 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Conductor Resistance: DC: 18.1 Ohm/km, AC: 25.8 Ohm/km, Insulation Resistance: 17 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red Black Green/Yellow Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Olex
Standard Pack Size 200
UNSPSC Class 26121600
Vendor Product CNCP02A2002WVAA
Conductor Type Solid Copper
Core Colours Red/Black/Green/Yellow
Conductor Resistance DC: 18.1 Ohm/km AC: 25.8 Ohm/km
Insulation Material V-90 PVC
Insulation Resistance 17 MOhm/km
Insulation Thickness 0.6 mm
Overall Diameter 8.9 mm x 4.2 mm
Product Type Power Cable
Sheath Colour White
Sheath Material PVC
Sheath Thickness 0.9 mm
Standards AS/NZS 1125 AS/NZS 5000.2
Temperature 90 deg C
Voltage 450-750 Volt
Stranding 1/1.13 mm
Conductor Size 1 mm
Earth Conductor Size 1 mm
Number of Cores 2 + Earth
